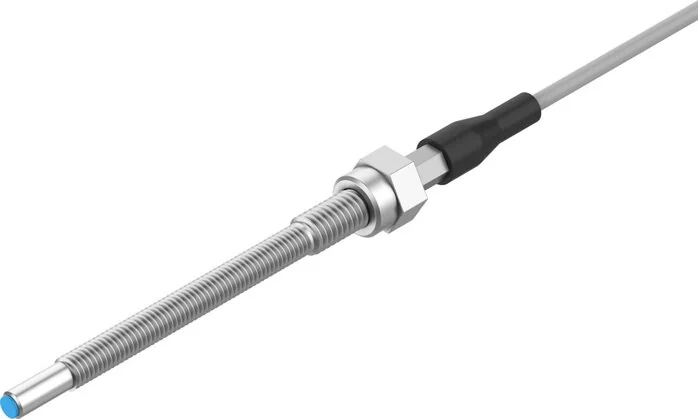

Festo - DADG-D-F8-40-8072859 - Proximity Switch

SKU: festo-dadg-d-f8-40-8072859

Festo - DADG-D-F8-40-8072859 - Proximity Switch

€170.96€146.12 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€170.96

Brand
Festo
Size
M4
Permission
RCM mark
Material Note
RoHs compliant
Control Output
PNP
Fastening Type
Permanently screwed
Residual Ripple
10%
Cable Length (m)
2
Housing Material
Steel
Integration Type
flush
Voltage Drop (V)
2
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,01
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Empty Run Current (mA)
10
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Output Current (mA)
100
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Reverse Polarity Protection
for all electrical connections
Secured Safety Distance (mm)
0,64
Max. Switching Frequency (Hz)
5000
Operating Voltage Range DC (V)
10 to 30
Max. Switching Frequency DC (Hz)
5.000
Measurement Switching Distance (mm)
0,6
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
EAN
4052568454722
Manufacturer
Festo
