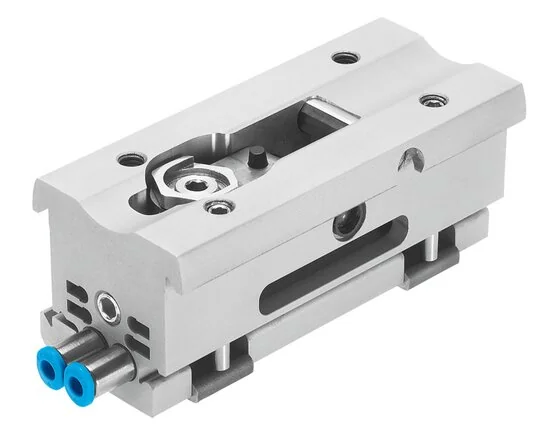

Festo - DADM-DGC-32-A-541701 - Intermediate Position Module

SKU: festo-dadm-dgc-32-a-541701

Browse all parts
Festo - DADM-DGC-32-A-541701 - Intermediate Position Module

€734.57€627.84 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€734.57

Brand
Festo
Size
32
Nut Material
verzinkt
Material Note
RoHs compliant
Repeatability
0,02
Fastening Type
clamped in DGC cylinder
Lever Material
High-alloyed stainless steels
Seals Material
NBR
Clamps Material
High-alloyed stainless steels
Housing Material
eloxiert
Position Detection
For proximity switch
Fine Adjustment (mm)
2
Pneumatic Connection
QS-4
Installation Position
arbitrary
Max. Swivel Time (ms)
100
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Max. Impact Speed (m/s)
3,0
Operating Pressure (bar)
0,25 to 0,8
Ambient Temperature (°C)
-10 to 60
Limit-stop Screw Material
verzinkt
Corrosion Resistance Class KBK
2 - moderate corrosion stress
EAN
4052568179786
Manufacturer
Festo
