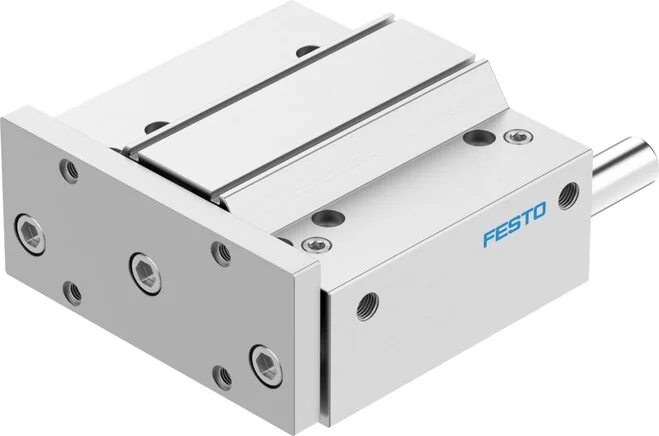

Festo - DFM-100-125-P-A-KF-170971 - Guide Cylinder

SKU: festo-dfm-100-125-p-a-kf-170971

Browse all parts
Festo - DFM-100-125-P-A-KF-170971 - Guide Cylinder

€1,801.34€1,539.61 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,801.34

Brand
Festo
Guide
ball guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
125
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
100
Seals Material
NBR
Moving Mass (g)
7782
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,4
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
3043
Max. Force Fz (N)
3043
Position Detection
For proximity switch
Construction Set Up
Guide
Max. Torque Mx (Nm)
286,02
Max. Torque My (Nm)
155,16
Max. Torque Mz (Nm)
155,16
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G3/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Max. Force Fy Static (N)
5.400,0
Max. Force Fz Static (N)
5.400,0
Operating Pressure (MPa)
0,05 to 1
Ambient Temperature (°C)
60
Max. Torque Mx Static (Nm)
507,6
Max. Torque My Static (Nm)
275,4
Max. Torque Mz Static (Nm)
275,4
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
1
Max. Permitted Moment Load Mx Depending On Stroke (Nm)
53,98
Centre Of Mass Of The Moved Mass Depending On Stroke (mm)
85,2
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
125
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
4418
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
4712
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
463
EAN
4052568140519
Manufacturer
Festo
