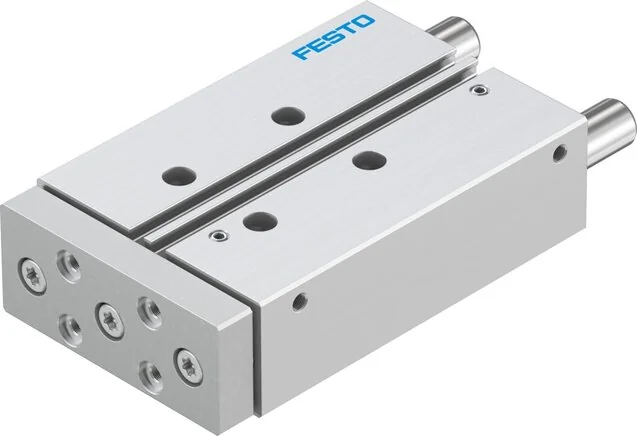

Festo - DFM-20-80-P-A-GF-F1A-8118848 - Guide Cylinder

SKU: festo-dfm-20-80-p-a-gf-f1a-8118848

Browse all parts
Festo - DFM-20-80-P-A-GF-F1A-8118848 - Guide Cylinder

€471.05€402.61 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€471.05

Brand
Festo
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
80
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
20
Seals Material
NBR
Moving Mass (g)
672
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
709,3
Max. Force Fz (N)
709,3
Position Detection
For proximity switch
Construction Set Up
Guide
Max. Torque Mx (Nm)
20,57
Max. Torque My (Nm)
16,31
Max. Torque Mz (Nm)
16,31
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Max. Force Fy Static (N)
709,3
Max. Force Fz Static (N)
709,3
Operating Pressure (MPa)
0,2 to 1
Ambient Temperature (°C)
80
Max. Torque Mx Static (Nm)
20,57
Max. Torque My Static (Nm)
16,31
Max. Torque Mz Static (Nm)
16,31
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,2
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
50
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
141
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
188
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
86
EAN
4052568570095
Manufacturer
Festo
