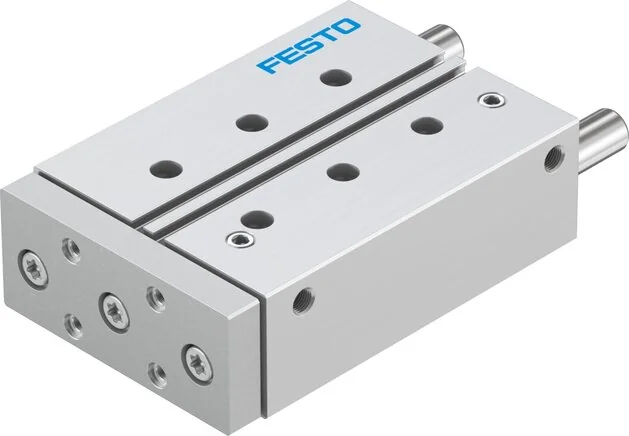

Festo - DFM-32-100-P-A-KF-F1A-8118897 - Guide Cylinder

SKU: festo-dfm-32-100-p-a-kf-f1a-8118897

Browse all parts
Festo - DFM-32-100-P-A-KF-F1A-8118897 - Guide Cylinder

€821.87€702.45 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€821.87

Brand
Festo
Guide
ball guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
100
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
32
Seals Material
NBR
Moving Mass (g)
1254
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
1130
Max. Force Fz (N)
1130
Position Detection
For proximity switch
Construction Set Up
Guide
Max. Torque Mx (Nm)
44,09
Max. Torque My (Nm)
28,83
Max. Torque Mz (Nm)
28,83
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Max. Force Fy Static (N)
1.260,0
Max. Force Fz Static (N)
1.260,0
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
60
Max. Torque Mx Static (Nm)
49,14
Max. Torque My Static (Nm)
32,13
Max. Torque Mz Static (Nm)
32,13
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,4
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Max. Permitted Moment Load Mx Depending On Stroke (Nm)
Jun 86
Centre Of Mass Of The Moved Mass Depending On Stroke (mm)
63
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
50
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
415
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
482
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
138
EAN
4052568560485
Manufacturer
Festo
