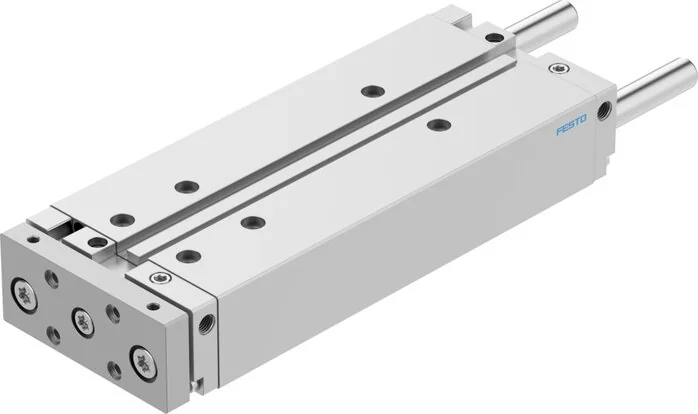

Festo - DFM-32-200-B-PPV-A-KF-8161438 - Guide Cylinder

SKU: festo-dfm-32-200-b-ppv-a-kf-8161438

Browse all parts
Festo - DFM-32-200-B-PPV-A-KF-8161438 - Guide Cylinder

€1,249.21€1,067.70 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,249.21

Brand
Festo
Guide
ball guide
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
200
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Piston Ø (mm)
32
Seals Material
NBR
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Position Detection
For proximity switch
Construction Set Up
Guide
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,4
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
415
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
482
EAN
4052568595890
Manufacturer
Festo
