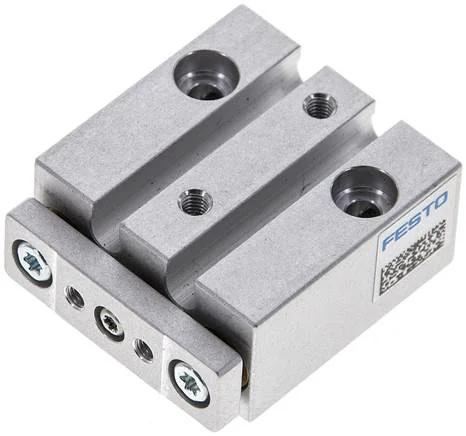

Festo - DFM-6-10-P-A-GF-4149945 - Guide Cylinder

SKU: festo-dfm-6-10-p-a-gf-4149945

Browse all parts
Festo - DFM-6-10-P-A-GF-4149945 - Guide Cylinder

€158.89€135.80 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€158.89

Brand
Festo
Guide
sliding guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
10
Material Note
RoHs compliant
Cover Material
High-alloyed stainless steels
Piston Ø (mm)
6
Seals Material
NBR
Moving Mass (g)
9
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Speed (m/s)
1,3
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
End Plate Material
Aluminium-Knetlegierung, eloxiert
Material Guide Rod
High-alloyed stainless steels
Position Detection
For proximity switch
Construction Set Up
Guide
Piston Rod Material
High-alloyed stainless steels
Torsional Play (°)
0,1
Pneumatic Connection
M3
Installation Position
arbitrary
Dynamic Seals Material
HNBR
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,012
Max. Permitted Moment Load Mx Depending On Stroke (Nm)
0,008
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 6 nach ISO 14644-1
Distance From Centre Of Gravity Of Load To Yoke Plate Xs (mm)
10
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
13
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
17
Max. Usable Load Depending On The Stroke At A Defined Distance Xs (N)
0,85
EAN
4052568418014
Manufacturer
Festo
