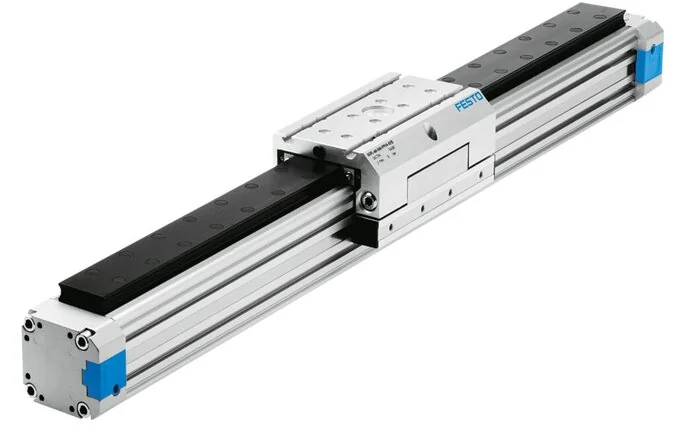

Festo - DGPL-32-500-PPV-A-B-KF-526659 - Linear Drive

SKU: festo-dgpl-32-500-ppv-a-b-kf-526659

Browse all parts
Festo - DGPL-32-500-PPV-A-B-KF-526659 - Linear Drive

€3,882.22€3,318.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,882.22

Brand
Festo
Guide
ball guide
Dampening
Stossdämpfer, harte Kennlinie
Stroke (mm)
500
Cover Material
beschichtet
Piston Ø (mm)
32
Seals Material
TPE-U(PU)
Moving Mass (g)
890
Housing Material
eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Carrier Principle
Form-fitting (slot)
Position Detection
For proximity switch
Pneumatic Connection
G1/8
Dampening Length (mm)
20
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
-10 to 60
Base Weight At 0 mm Stroke (g)
2720
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
890
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Supplement Moved Mass Per 10 mm Stroke (g)
69
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
483
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
483
EAN
4052568162443
Manufacturer
Festo
