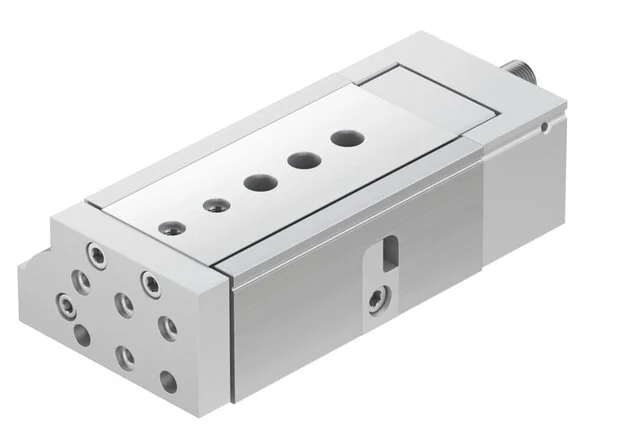

Festo - DGSL-25-40-EA-570207 - Mini Slide

SKU: festo-dgsl-25-40-ea-570207

Browse all parts
Festo - DGSL-25-40-EA-570207 - Mini Slide

€990.29€846.40 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€990.29

Brand
Festo
Guide
Ball cage guide
Dampening
Short elastic dampening rings / plates both sides
Stroke (mm)
40
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Ø (mm)
32
Seals Material
HNBR
Moving Mass (g)
1181
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
4643
Max. Force Fz (N)
4643
Position Detection
For proximity switch
Repeatability (mm)
0.3
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
110
Max. Torque My (Nm)
60
Max. Torque Mz (Nm)
60
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0.1 to 0.8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,55
Alignable End Position Range / Length Rear (mm)
5,5
Alignable End Position Range / Length Front (mm)
11,5
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
415
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
483
EAN
4052568217020
Manufacturer
Festo
