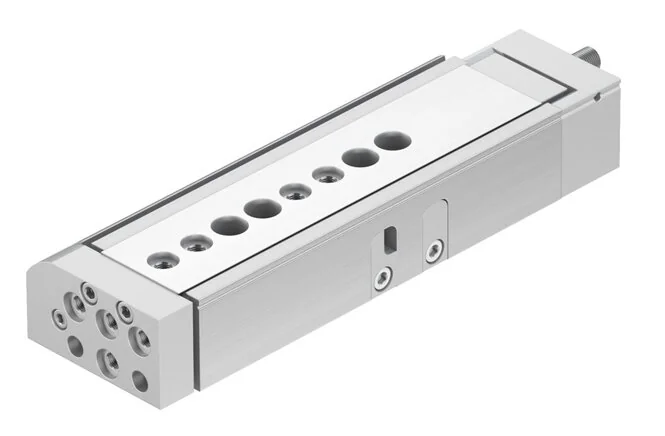

Festo - DGSL-8-50-EA-570170 - Mini Slide

SKU: festo-dgsl-8-50-ea-570170

Browse all parts
Festo - DGSL-8-50-EA-570170 - Mini Slide

€863.92€738.39 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€863.92

Brand
Festo
Guide
Ball cage guide
Dampening
Short elastic dampening rings / plates both sides
Stroke (mm)
50
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Ø (mm)
10
Seals Material
HNBR
Moving Mass (g)
152
Housing Material
Aluminium wrought alloy
Max. Speed (m/s)
0,8
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
962
Max. Force Fz (N)
962
Position Detection
For proximity switch
Repeatability (mm)
0.3
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
10
Max. Torque My (Nm)
8
Max. Torque Mz (Nm)
8
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
60
Operating Mode, Drive Unit
Joch
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,08
Alignable End Position Range / Length Rear (mm)
3,5
Alignable End Position Range / Length Front (mm)
20,5
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
40
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
47
EAN
4052568216658
Manufacturer
Festo
