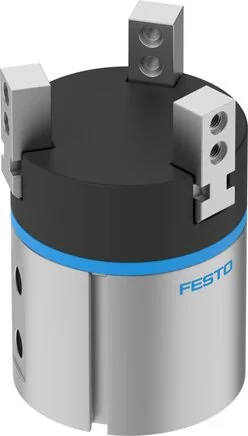

Festo - DHDS-50-A-NC-1259496 - Three-Point Gripper

SKU: festo-dhds-50-a-nc-1259496

Browse all parts
Festo - DHDS-50-A-NC-1259496 - Three-Point Gripper

€1,550.76€1,325.44 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,550.76

Brand
Festo
Size
50
Mass Inertia
6,18
Material Note
RoHs compliant
Fastening Type
With Female thread and dowel pin
Gripper Function
3 point
Housing Material
Aluminium wrought alloy, hard anodised
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
PA
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
G1/8
Gripper Jaws Material
High-alloyed stainless steels
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
3
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Operating Pressure (bar)
4 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,04
Stroke Per Gripper Jaw (mm)
6
Max. Exchange Precision (mm)
0,2
Max. Gripper Jaw Play Sz (mm)
0,02
Corrosion Resistance Class KBK
1 - low corrosion stress
Lubrication Interval Guide Elements
10
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
250
Max. Mass Per External Griper Finger (g)
250
Max. Torque On Gripper Jaws Mx Static (Nm)
24
Max. Torque On Gripper Jaws My Static (Nm)
24
Max. Torque On Gripper Jaws Mz Static (Nm)
24
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,2
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
50
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
73
EAN
4052568229337
Manufacturer
Festo
