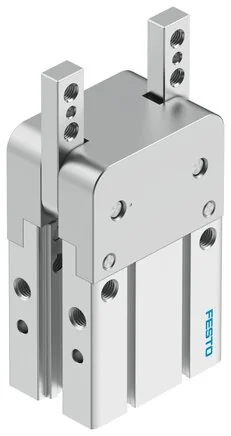

Festo - DHWC-25-A-8128136 - Angular Gripper

SKU: festo-dhwc-25-a-8128136

Browse all parts
Festo - DHWC-25-A-8128136 - Angular Gripper

€500.58€427.85 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€500.58

Brand
Festo
Size
25
Drive System
pneumatic
Mass Inertia
1,083
Material Note
RoHs compliant
Fastening Type
With Female thread and dowel pin
Gripper Function
elbow
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
Aluminium-Knetlegierung, eloxiert
Position Detection
For proximity switch
Construction Set Up
Force controlled movement cycle
Pneumatic Connection
M5
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
without
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
30
Operating Pressure (MPa)
0.1 to 0.8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
-10 to 60
Repeatability Grippers (mm)
0,1
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Working Frequency Gripper (Hz)
2
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
140
Max. Torque On Gripper Jaws Mx Static (Nm)
2,2
Max. Torque On Gripper Jaws My Static (Nm)
2,2
Max. Torque On Gripper Jaws Mz Static (Nm)
2,2
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
50
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
38
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Total Gripper Torque, Closing, 0.6 MPa (6 bar, 87 psi) (Ncm)
265,1
Total Gripping Torque At 0.6 MPa (6 bar, 87 psi), Opening (Ncm)
322,6
EAN
4052568567880
Manufacturer
Festo
