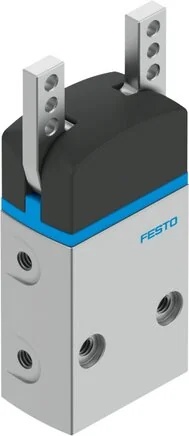

Festo - DHWS-10-A-1310177 - Angular Gripper

SKU: festo-dhws-10-a-1310177

Browse all parts
Festo - DHWS-10-A-1310177 - Angular Gripper

€407.66€348.43 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€407.66

Brand
Festo
Size
10
Mass Inertia
0,03
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
elbow
Housing Material
harteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Cap Material
PA
Position Detection
For Hall sensors
Construction Set Up
lever
Pneumatic Connection
M3
Gripper Jaws Material
High-alloyed steel
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Max. Opening Angle (°)
40
Operating Pressure (bar)
2 to 8
Rotational Symmetry (mm)
0,2
Ambient Temperature (°C)
5 to 60
Repeatability Grippers (mm)
0,04
Max. Exchange Precision (mm)
0,2
Corrosion Resistance Class KBK
1 - low corrosion stress
Max. Working Frequency Gripper (Hz)
4
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Force On Gripper Jaws Fz Static (N)
25
Max. Torque On Gripper Jaws Mx Static (Nm)
0,6
Max. Torque On Gripper Jaws My Static (Nm)
0,6
Max. Torque On Gripper Jaws Mz Static (Nm)
0,6
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
22
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
10
Total Gripper Torque, Closing, 0.6 MPa (6 bar, 87 psi) (Ncm)
30
Total Gripping Torque At 0.6 MPa (6 bar, 87 psi), Opening (Ncm)
43
EAN
4052568229658
Manufacturer
Festo
