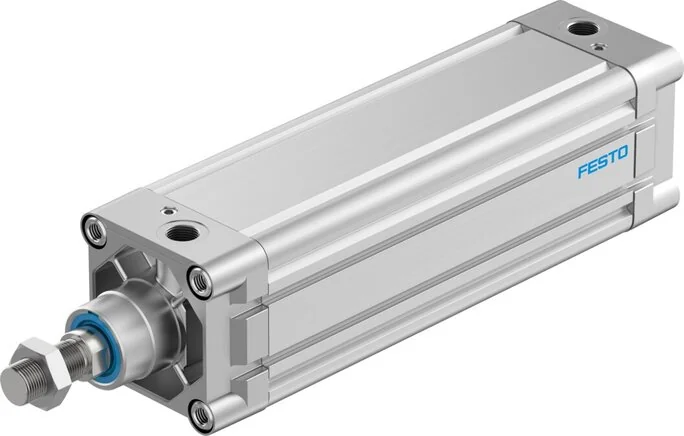

Festo - DNC-125-160-PPV-A-163503 - Standard Cylinder

SKU: festo-dnc-125-160-ppv-a-163503

Browse all parts
Festo - DNC-125-160-PPV-A-163503 - Standard Cylinder

€1,221.98€1,044.43 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,221.98

Brand
Festo
Variants
One-sided piston rod
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
160
Material Note
RoHs compliant
Cover Material
beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
125
Seals Material
TPE-U(PU)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M27x2
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed steel
Complies To Standard
ISO 15552
Pneumatic Connection
G1/2
Dampening Length (mm)
42
Installation Position
arbitrary
Cylinder Tube Material
gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
6771
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
2809
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
5
Weight Supplement Per 10 mm Stroke (g)
168
Supplement Moved Mass Per 10 mm Stroke (g)
63
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
6881
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
7363
EAN
4052568134976
Manufacturer
Festo
