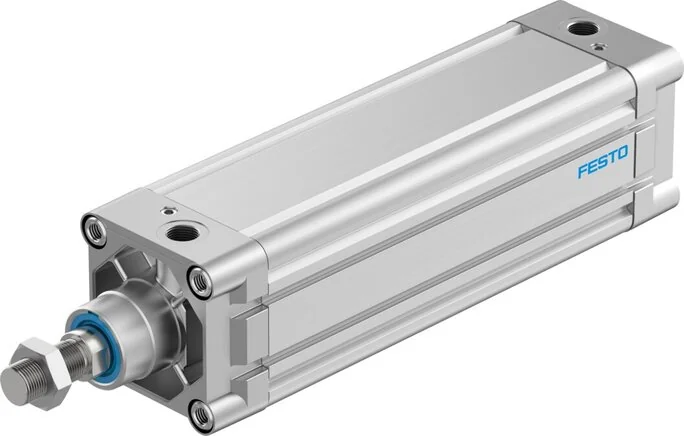

Festo - DNC-80-125-PPV-A-163438 - Standard Cylinder

SKU: festo-dnc-80-125-ppv-a-163438

Browse all parts
Festo - DNC-80-125-PPV-A-163438 - Standard Cylinder

€593.56€507.32 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€593.56

Brand
Festo
Variants
One-sided piston rod
Dampening
pneumatische Dämpfung beidseitig einstellbar
Stroke (mm)
125
Material Note
RoHs compliant
Cover Material
beschichtet
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
80
Seals Material
TPE-U(PU)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M20x1,5
Position Detection
For proximity switch
Construction Set Up
Profilrohr
Piston Rod Material
High-alloyed steel
Complies To Standard
ISO 15552
Pneumatic Connection
G3/8
Dampening Length (mm)
32
Installation Position
arbitrary
Cylinder Tube Material
gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,06 to 1,2
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
2790
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
1131
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,9
Weight Supplement Per 10 mm Stroke (g)
106
Supplement Moved Mass Per 10 mm Stroke (g)
38
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
2721
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
3016
EAN
4052568134501
Manufacturer
Festo
