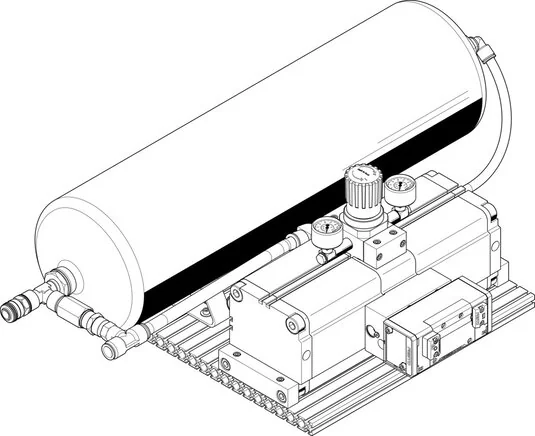

Festo - DPA-100-16-CRVZS20-552937 - Pressure Booster

SKU: festo-dpa-100-16-crvzs20-552937

Festo - DPA-100-16-CRVZS20-552937 - Pressure Booster

€4,773.92€4,080.27 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,773.92

Brand
Festo
Volume (l)
20
Material Note
RoHs compliant
Fastening Type
With Cap nuts
Piston Ø (mm)
100
Operating Medium
Compressed air to ISO 8573-1:2010 [7:3:4]
Pressure Display
with pressure gauge
Construction Set Up
mit Rückschlagventil
Installation Position
Condensate discharge downwards
Input Pressure 1 (bar)
2 to 8
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-16
Pneumatic Connection 2
KD4
Pneumatic Connection 3
silencer
Output Pressure 2 (MPa)
0,4 to 1,6
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
5 to 60
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Compressed Air Storage Material
High-alloyed stainless steels
Pressure Regulation Range (MPa)
0,4 to 1,6
Note On Operating And Control Medium
Oiled operation not possible
Max. Tightening Torque Condensate Drain (Nm)
27
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Druckgeräte
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
EAN
4052568195007
Manufacturer
Festo
