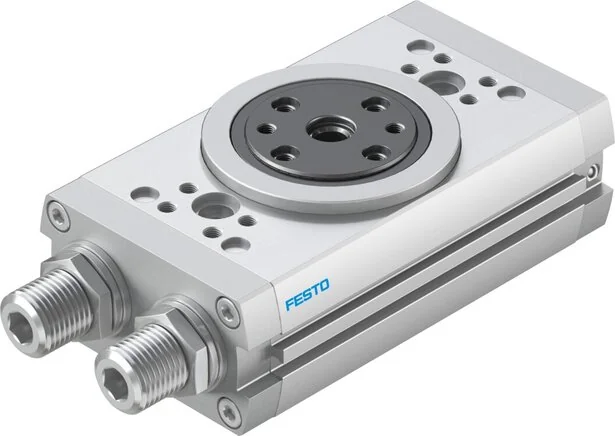

Festo - DRRD-32-180-FH-PA-1578512 - Swivel Drive

SKU: festo-drrd-32-180-fh-pa-1578512

Browse all parts
Festo - DRRD-32-180-FH-PA-1578512 - Swivel Drive

€1,189.27€1,016.47 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,189.27

Brand
Festo
Size
32
Dampening
elastische Dämpfungsringe/-platten beidseitig
Material Note
RoHs compliant
Cover Material
eloxiert
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
gleiteloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Swivel Angle (°)
180
Position Detection
For proximity switch
Construction Set Up
Toothed rack/pinion
Dampening Angle (°)
33
Drive Shaft Material
Quenched and tempered steel
Pneumatic Connection
G1/8
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Principle Of Operation
double acting
Operating Pressure (MPa)
0,3 to 0,8
Ambient Temperature (°C)
60
Permitted Mass Moment Of Inertia
0,15
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Setting Range Of Swivel Angle For Each End Position
+10 /-100 deg
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 5 nach ISO 14644-1
EAN
4052568242190
Manufacturer
Festo
