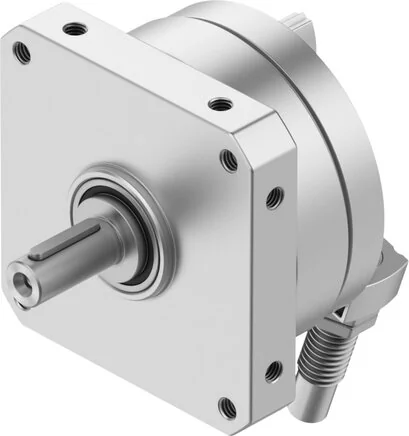

Festo - DSM-16-270-CC-A-B-547576 - Swivel Drive

SKU: festo-dsm-16-270-cc-a-b-547576

Browse all parts
Festo - DSM-16-270-CC-A-B-547576 - Swivel Drive

€626.93€535.84 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€626.93

Brand
Festo
Size
16
Dampening
Stoßdämpfer beidseitig
Material Note
RoHs compliant
Fastening Type
with female thread
Seals Material
TPE-U(PU)
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Swivel Angle (°)
0 to 246
Position Detection
For proximity switch
Repeatability (°)
0,1
Construction Set Up
Rotary vane
Dampening Angle (°)
12,0
Drive Shaft Material
nickel-plated
Fine Adjustment (°)
-3
Max. Axial Force (N)
30
Pneumatic Connection
M5
Installation Position
arbitrary
Max. Impact Force (N)
160
Max. Radial Force (N)
75
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
double acting
Operating Pressure (MPa)
0,18 to 1
Ambient Temperature (°C)
-10 to 60
Permissible Stop Radius (mm)
17
Corrosion Resistance Class KBK
0 - No corrosion stressing
Permitted Mass Moment Of Inertia
0,02
Settings Range Swivel Angle (°)
0 to 246
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Theoretical Torque At 0.6 MPa (6 bar, 87 psi) (Nm)
2,5
Max. Swivel Frequency At 0.6 MPa (6 bar, 87 psi) (Hz)
1,0
EAN
4052568188979
Manufacturer
Festo
