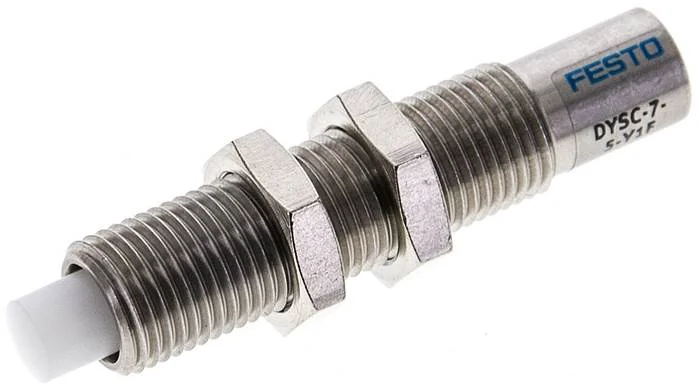

Festo - DYSC-7-5-Y1F-548012 - Shock Absorber

SKU: festo-dysc-7-5-y1f-548012

Browse all parts
Festo - DYSC-7-5-Y1F-548012 - Shock Absorber

€128.13€109.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€128.13

Brand
Festo
Size
7
Dampening
self-adjusting
Stroke (mm)
5
Material Note
RoHs compliant
Fastening Type
With locking nut
Seals Material
NBR
Load Range (kg)
5
Reset Force (N)
1,2
Housing Material
High-alloyed steel
Position Detection
without
Piston Rod Material
High-alloyed steel
Dampening Length (mm)
5
Installation Position
arbitrary
Max. Impact Force (N)
300
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Max. Impact Speed (m/s)
3
Max. Residual Energy (J)
0,010
Min. Insertion Force (N)
10
Ambient Temperature (°C)
-10 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Reset Time At Room Temperature (s)
0,2
Max. Energy Consumption Per Hour (J)
12.000
Max. Energy Consumption Per Stroke (J)
2,0
Reset Time At Min. Ambient Temperature (s)
1
EAN
4052568005986
Manufacturer
Festo
