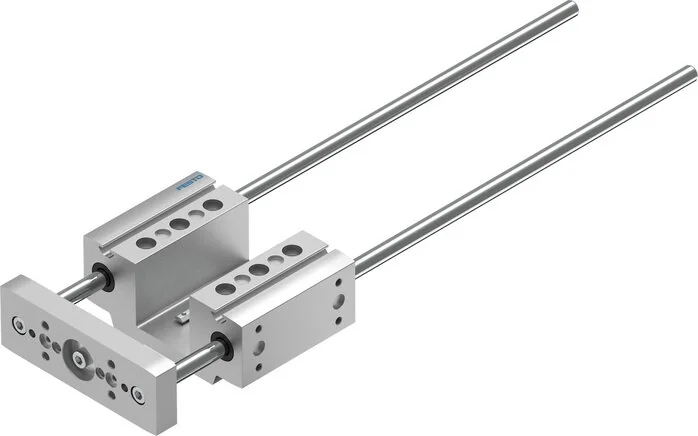

Festo - EAGF-P1-KF-25-300-3192951 - Guide Unit

SKU: festo-eagf-p1-kf-25-300-3192951

Festo - EAGF-P1-KF-25-300-3192951 - Guide Unit

€467.94€399.95 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€467.94

Brand
Festo
Size
25
Guide
ball guide
Stroke (mm)
300
Fastening Type
with female thread
Housing Material
Aluminium wrought alloy, anodized
Max. Speed (m/s)
1
Max. Force Fy (N)
320
Max. Force Fz (N)
320
Pushing Force (N)
4,0
Construction Set Up
Guide
Max. Torque Mx (Nm)
15
Max. Torque My (Nm)
10
Max. Torque Mz (Nm)
10
Protection Category
IP40
Yoke Plate Material
Aluminium wrought alloy, anodized
Material Information
Copper and PTFE-free, RoHs compliant
Quenched and tempered steel, hard chromium plated
Reversing Play (µm)
0
Installation Position
arbitrary
Max. Force Fy Static (N)
415
Max. Force Fz Static (N)
415
Max. Acceleration (m/s²)
25
Max. Torque Mx Static (Nm)
19
Max. Torque My Static (Nm)
12
Max. Torque Mz Static (Nm)
12
Base Weight At 0 mm Stroke (g)
1.080
Corrosion Resistance Class KBK
1 - low corrosion stress
Moving Mass At 0 mm Stroke (g)
300
Weight Supplement Per 10 mm Stroke (g)
12
Supplement Moved Mass Per 10 mm Stroke (g)
12
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
30
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
4,5
EAN
4052568269005
Manufacturer
Festo
