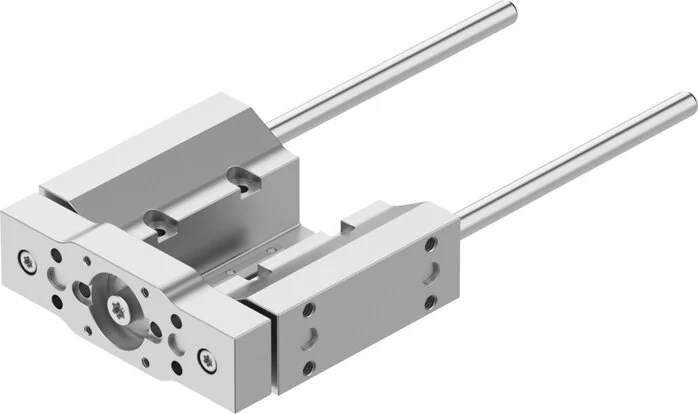

Festo - EAGF-P2-KF-32-50-8158032 - Guide Unit

SKU: festo-eagf-p2-kf-32-50-8158032

Festo - EAGF-P2-KF-32-50-8158032 - Guide Unit

€369.67€315.96 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€369.67

Brand
Festo
Size
32
Guide
ball guide
Stroke (mm)
50
Material Note
RoHs compliant
Fastening Type
with female thread
Reversing Play
0
Housing Material
eloxiert
Max. Speed (m/s)
1
Max. Acceleration
25
Max. Force Fy (N)
160
Max. Force Fz (N)
160
Pushing Force (N)
1,6
Construction Set Up
Guide
Max. Torque Mx (Nm)
6
Max. Torque My (Nm)
4
Max. Torque Mz (Nm)
4
Protection Category
IP40
Yoke Plate Material
eloxiert
Installation Position
arbitrary
Guide Element Material
hartverchromt
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Force Fy Static (N)
355
Max. Force Fz Static (N)
355
Ambient Temperature (°C)
0 to 60
Max. Torque Mx Static (Nm)
13
Max. Torque My Static (Nm)
9
Max. Torque Mz Static (Nm)
9
Base Weight At 0 mm Stroke (g)
613
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
170
Weight Supplement Per 10 mm Stroke (g)
7,9
Supplement Moved Mass Per 10 mm Stroke (g)
7,9
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
26
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
4,3
EAN
4052568605704
Manufacturer
Festo
