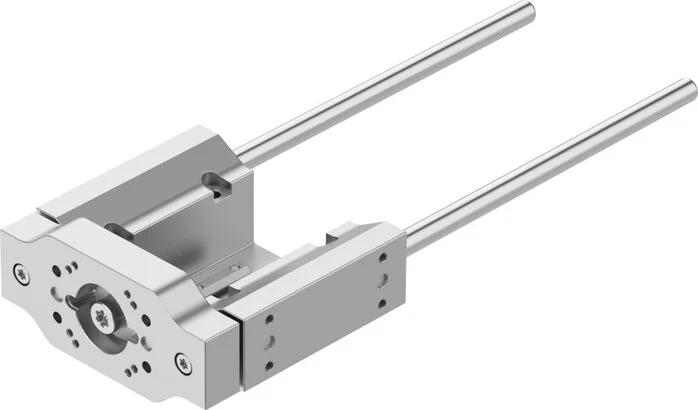

Festo - EAGF-P2-KF-60-300-8158031 - Guide Unit

SKU: festo-eagf-p2-kf-60-300-8158031

Festo - EAGF-P2-KF-60-300-8158031 - Guide Unit

€557.08€476.14 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€557.08

Brand
Festo
Size
60
Guide
ball guide
Stroke (mm)
300
Material Note
RoHs compliant
Fastening Type
with female thread
Reversing Play
0
Housing Material
eloxiert
Max. Speed (m/s)
1
Max. Acceleration
25
Max. Force Fy (N)
380
Max. Force Fz (N)
380
Pushing Force (N)
3
Construction Set Up
Guide
Max. Torque Mx (Nm)
20
Max. Torque My (Nm)
15
Max. Torque Mz (Nm)
15
Protection Category
IP40
Yoke Plate Material
eloxiert
Installation Position
arbitrary
Guide Element Material
hartverchromt
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Force Fy Static (N)
510
Max. Force Fz Static (N)
510
Ambient Temperature (°C)
0 to 60
Max. Torque Mx Static (Nm)
27
Max. Torque My Static (Nm)
20
Max. Torque Mz Static (Nm)
20
Base Weight At 0 mm Stroke (g)
1614
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
583
Weight Supplement Per 10 mm Stroke (g)
17,8
Supplement Moved Mass Per 10 mm Stroke (g)
17,8
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
31
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
4,3
EAN
4052568605490
Manufacturer
Festo
