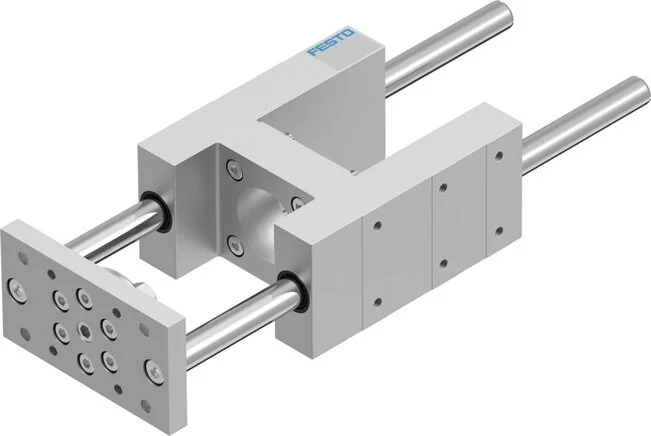

Festo - EAGF-V2-KF-63-200-1725843 - Guide Unit

SKU: festo-eagf-v2-kf-63-200-1725843

Festo - EAGF-V2-KF-63-200-1725843 - Guide Unit

€1,402.34€1,198.58 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,402.34

Brand
Festo
Size
63
Guide
ball guide
Stroke (mm)
200
Material Note
RoHs compliant
Fastening Type
with female thread
Reversing Play
0
Moving Mass (g)
3539
Housing Material
eloxiert
Max. Force Fy (N)
1260
Max. Force Fz (N)
1260
Pushing Force (N)
15
Construction Set Up
Guide
Max. Torque Mx (Nm)
75
Max. Torque My (Nm)
90
Max. Torque Mz (Nm)
90
Yoke Plate Material
Steel
Installation Position
arbitrary
Guide Element Material
Quenched and tempered steel
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Force Fy Static (N)
1.600
Max. Force Fz Static (N)
1.600
Ambient Temperature (°C)
-20 to 80
Max. Torque Mx Static (Nm)
95
Max. Torque My Static (Nm)
115
Max. Torque Mz Static (Nm)
115
Corrosion Resistance Class KBK
0 - No corrosion stressing
Centre Of Mass Of The Moved Mass At 0 Stroke (mm)
48
Supplement Centre Of Mass Of The Moved Mass Per 10 Stroke (mm)
4,1
EAN
4052568246204
Manufacturer
Festo
