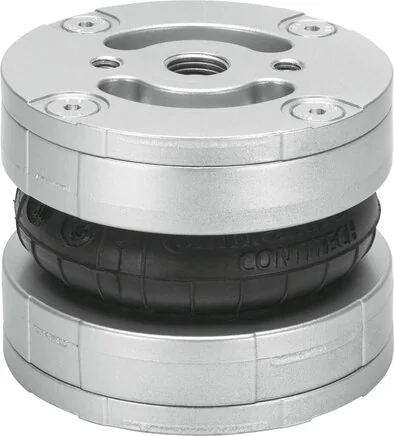

Festo - EB-80-20-2748903 - Bellow Cylinder

SKU: festo-eb-80-20-2748903

Browse all parts
Festo - EB-80-20-2748903 - Bellow Cylinder

€375.43€320.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€375.43

Brand
Festo
Size
80
Stroke (mm)
20
Material Note
RoHs compliant
Fastening Type
with female thread
Reset Force (N)
400
Bellows Material
CR
Housing Material
Cast aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [-:-:4]
Max. Tilt Angle (°)
10
Pneumatic Connection
G1/4
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Displacement (mm)
5
Principle Of Operation
single action
Operating Pressure (bar)
0 to 8
Ambient Temperature (°C)
-40 to 70
Max. Height, Extended (mm)
70
Min. Integration Height (mm)
50
Corrosion Resistance Class KBK
0 - No corrosion stressing
Required Installation Diameter (mm)
95
Note On Operating And Control Medium
Oiled operation not possible
EAN
4052568255077
Manufacturer
Festo
