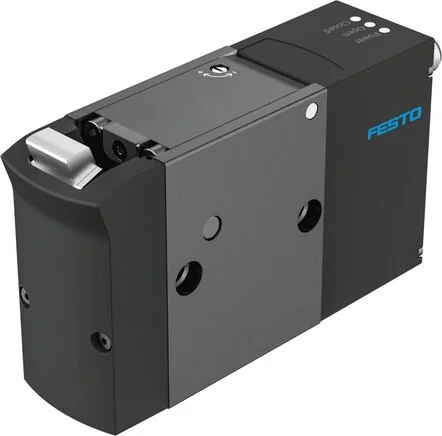

Festo - EFSD-20-PV-M12-2942445 - Stopper Cylinder

SKU: festo-efsd-20-pv-m12-2942445

Browse all parts
Festo - EFSD-20-PV-M12-2942445 - Stopper Cylinder

€1,592.16€1,360.82 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,592.16

Brand
Festo
Size
20
KC-mark
KC-EMV
Motor Type
Step motor
Permission
RCM mark
Material Note
RoHs compliant
Cover Material
PA reinforced
Fastening Type
with fastening set
Seals Material
NBR
Screws Material
Steel, powder-coated
Housing Material
Aluminium wrought alloy, hard anodised
Relative Humidity
Not condensing
Extension Time (s)
100
Position Detection
with hall sensors
Construction Set Up
Electrical stopper cylinder
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Retraction Time (s)
100
Max. Line Length (m)
30
Max. Power Input (A)
2000
Dampening Length (mm)
11,5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-20 to 60
Max. Cycle Frequency (Hz)
0,33
Operation-readiness Display
LED
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 15 %
Nominal Operating Voltage DC (V)
24
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
Electrical Connection Sensor, Connection Type
Plug
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Electrical Connection Actuator, Connection Type
Plug
Permitted Shear Force During Switching Process (N)
20
Electrical Connection Sensor, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection Sensor, Number Of Pins / Wires
5
Electrical Connection Actuator, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection Actuator, Number Of Pins / Wires
5
Electrical Connection Sensor, Max. Current Consumption (A)
0,3
Electrical Connection Actuator, Max. Current Consumption (A)
1,9
EAN
4052568290948
Manufacturer
Festo
