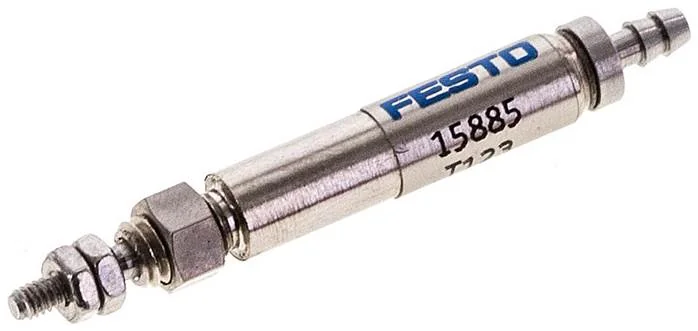

Festo - EG-4-5-PK-2-15885 - Round Cylinder

SKU: festo-eg-4-5-pk-2-15885

Browse all parts
Festo - EG-4-5-PK-2-15885 - Round Cylinder

€50.37€43.05 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€50.37

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
5
Material Note
RoHs compliant
Cover Material
High-alloyed steel
Fastening Type
With locking nut
Piston Rod End
Male thread
Piston Ø (mm)
4
Seals Material
TPE-U(PU)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Piston Rod Thread
M2
Position Detection
without
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
PK-2
Installation Position
arbitrary
Cylinder Tube Material
brass, nickel-plated
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Operating Pressure (bar)
3.5 to 7
Ambient Temperature (°C)
5 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Theoretical Max. Spring Return Force (N)
2,5
Theoretical Min. Spring Return Force (N)
1,3
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
5
EAN
4052568066673
Manufacturer
Festo
