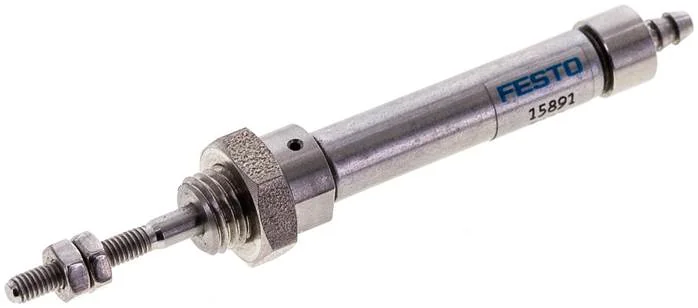

Festo - EG-6-5-PK-3-15891 - Round Cylinder

SKU: festo-eg-6-5-pk-3-15891

Browse all parts
Festo - EG-6-5-PK-3-15891 - Round Cylinder

€81.79€69.91 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€81.79

Brand
Festo
Variants
One-sided piston rod
Dampening
nicht einstellbar
Stroke (mm)
5
Material Note
RoHs compliant
Cover Material
High-alloyed steel
Fastening Type
With locking nut
Piston Rod End
Male thread
Piston Ø (mm)
6
Seals Material
NBR
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Piston Rod Thread
M3
Position Detection
without
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
PK-3
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Operating Pressure (bar)
3 to 7
Ambient Temperature (°C)
5 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Theoretical Max. Spring Return Force (N)
5,2
Theoretical Min. Spring Return Force (N)
4,1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
11,8
EAN
4052568066710
Manufacturer
Festo
