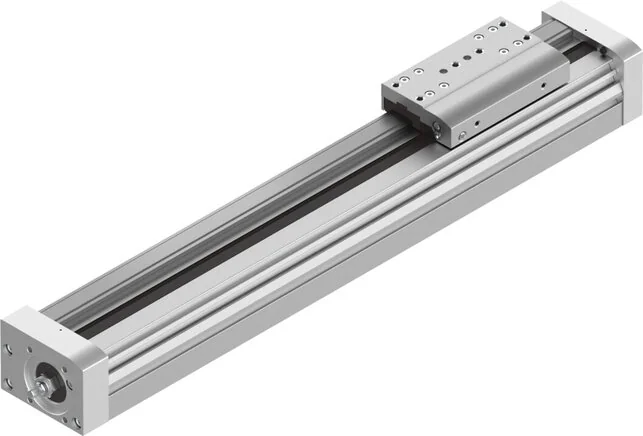

Festo - EGC-70-300-BS-10P-KF-0H-ML-GK-3013390 - Spindle Axis

SKU: festo-egc-70-300-bs-10p-kf-0h-ml-gk-3013390

Festo - EGC-70-300-BS-10P-KF-0H-ML-GK-3013390 - Spindle Axis

€2,312.29€1,976.32 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,312.29

Brand
Festo
Size
70
Guide
ball guide
Motor Type
Servo motor
Spindle Type
Ball screw
Feed Constant
10
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
10
Carrier Material
eloxiert
Max. Speed (m/s)
0,5
Profile Material
eloxiert
Spindle Material
Steel
Carriage Material
eloxiert
Max. Acceleration
15
Max. Force Fy (N)
1850
Max. Force Fz (N)
1850
Repeatability (mm)
±0.02
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
16
Max. Torque My (Nm)
51
Max. Torque Mz (Nm)
51
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
300
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
12
Closing Cover Material
eloxiert
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Feed Force Fx (N)
400
Actuator Cover Material
eloxiert
Guide Carriage Material
Steel
Second Moment Of Area Iy
419.000
Second Moment Of Area Iz
578.000
Ambient Temperature (°C)
-10 to 60
Reference Service Life (km)
5000
Max. Force Fy Total Axis (N)
1850
Max. Force Fz Total Axis (N)
1850
Max. Moment Mx Total Axis (Nm)
16
Max. Moment My Total Axis (Nm)
51
Max. Moment Mz Total Axis (Nm)
51
Torsional Moment Of Inertia To
88.000
Mass Inertia JH Per Metre Stroke
0,142
Max. Radial Force On Drive Shaft (N)
220
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
6815
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
6815
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
59
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
188
EAN
4052568268305
Manufacturer
Festo
