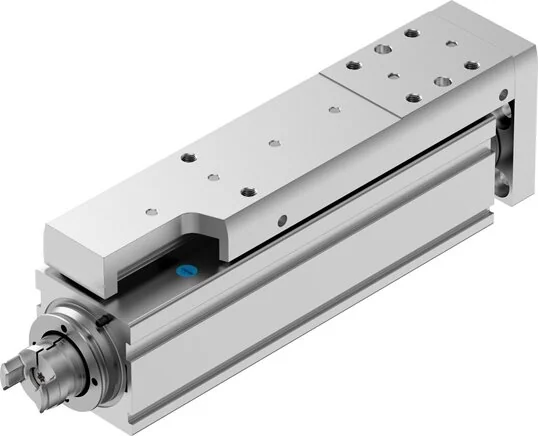

Festo - EGSC-BS-KF-32-75-3P-8162075 - Mini Slide

SKU: festo-egsc-bs-kf-32-75-3p-8162075

Festo - EGSC-BS-KF-32-75-3P-8162075 - Mini Slide

€756.81€646.85 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€756.81

Brand
Festo
Size
32
Guide
ball guide
Max. Speed
3750
Motor Type
Servo motor
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
3
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
3
Fastening Type
mit Zylinderstift
Reversing Play
150
Mass Inertia JO
0,00394
Housing Material
Aluminium-Knetlegierung, eloxiert
Max. Speed (m/s)
0,188
Spindle Material
Roller bearing steel
Carriage Material
Aluminium-Knetlegierung, eloxiert
Max. Acceleration
5
Max. Force Fy (N)
991
Max. Force Fz (N)
991
Position Detection
For proximity switch
Repeatability (mm)
±0.015
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
3,4
Max. Torque My (Nm)
3,2
Max. Torque Mz (Nm)
3,2
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
75
Yoke Plate Material
Aluminium wrought alloy
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
8
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
60
Guide Carriage Material
Roller bearing steel
Interface Code Actuator
V25
Ambient Temperature (°C)
0 to 50
Reference Service Life (km)
5000
Sound Pressure Level (dB(A))
55
Base Weight At 0 mm Stroke (g)
331
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
149
Mass Inertia JH Per Metre Stroke
0,02488
Impact Energy At The End Positions
0,000009
Mass Inertia JL Per kg Usable Load
0,00228
Static Load Factor Linear Guide (N)
3.880
Dynamic Load Factor Linear Guide (N)
2.135
Max. Radial Force On Drive Shaft (N)
75
Static Load Factor Fixed Bearing (N)
1.792
Dynamic Load Factor Fixed Bearing (N)
3.795
Weight Supplement Per 10 mm Stroke (g)
30
Static Load Factor Ball Screw Drive (N)
3.300
Dynamic Load Factor Ball Screw Drive (N)
1.900
Supplement Moved Mass Per 10 mm Stroke (g)
12
Reference Value Effective Load, Vertical (kg)
6
Empty Run Torque At Maximum Movement Speed (Nm)
0,044
Empty Run Torque At Minimum Movement Speed (Nm)
0,013
Reference Value Effective Load, Horizontal (kg)
6
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 9 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
2135
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
2135
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
10
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
7
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
7
EAN
4052568588168
Manufacturer
Festo
