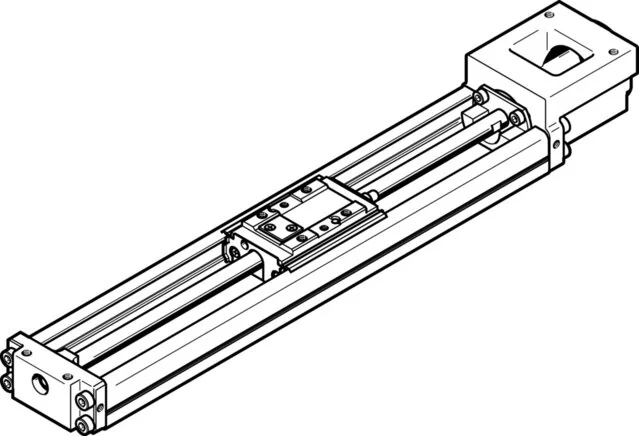

Festo - EGSK-20-125-6P-562763 - Electric Slide

SKU: festo-egsk-20-125-6p-562763

Festo - EGSK-20-125-6P-562763 - Electric Slide

€1,368.74€1,169.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,368.74

Brand
Festo
Size
20
Guide
ball guide
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
6
Material Note
RoHs compliant
Spindle Pitch
6
Fastening Type
With Female thread and dowel pin
Reversing Play
20
Mass Inertia JO
0,00144
Moving Mass (g)
64
Max. Speed (m/s)
0,79
Profile Material
High-alloyed stainless steels
Spindle Material
Steel
Carriage Material
Steel
Max. Acceleration
10
Max. Force Fy (N)
764
Max. Force Fz (N)
764
Repeatability (mm)
±0.01
Carriage Weight (g)
64
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
9,9
Max. Torque My (Nm)
3,2
Max. Torque Mz (Nm)
3,2
Protection Category
IP10
Working Stroke (mm)
125
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
6
Closing Cover Material
beschichtet
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
72
Actuator Cover Material
beschichtet
Second Moment Of Area Iy
6.100
Second Moment Of Area Iz
62.000
Ambient Temperature (°C)
0 to 40
Max. Actuator Torque (Nm)
0,069
Reference Service Life (km)
3000
Additional Carriage Weight (g)
64
Base Weight At 0 mm Stroke (g)
380
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,005
Mass Inertia JH Per Metre Stroke
0,01
Static Load Factor Linear Guide (N)
6.300
Dynamic Load Factor Linear Guide (N)
2.849
Static Load Factor Fixed Bearing (N)
1.240
Dynamic Load Factor Fixed Bearing (N)
1.000
Weight Supplement Per 10 mm Stroke (g)
27
Static Load Factor Ball Screw Drive (N)
1.450
Dynamic Load Factor Ball Screw Drive (N)
860
EAN
4052568209711
Manufacturer
Festo
