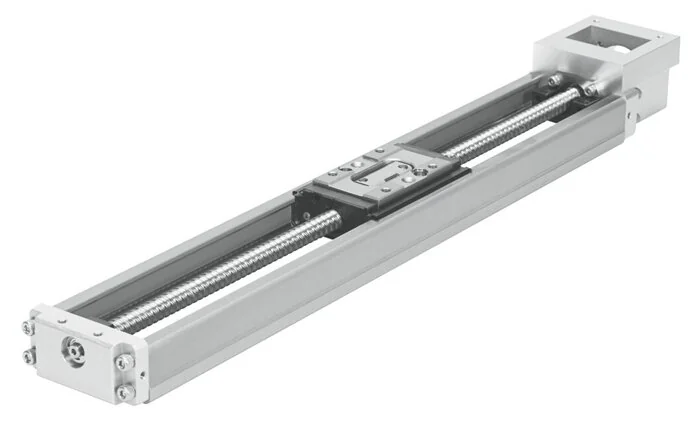

Festo - EGSK-26-100-6P-562769 - Electric Slide

SKU: festo-egsk-26-100-6p-562769

Festo - EGSK-26-100-6P-562769 - Electric Slide

€1,256.28€1,073.74 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,256.28

Brand
Festo
Size
26
Guide
ball guide
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
6
Material Note
RoHs compliant
Spindle Pitch
6
Fastening Type
With Female thread and dowel pin
Reversing Play
20
Mass Inertia JO
0,00481
Moving Mass (g)
153
Max. Speed (m/s)
0,59
Profile Material
High-alloyed stainless steels
Spindle Material
Steel
Carriage Material
Steel
Max. Acceleration
10
Max. Force Fy (N)
1541
Max. Force Fz (N)
1541
Repeatability (mm)
±0.01
Carriage Weight (g)
153
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
26,2
Max. Torque My (Nm)
8,9
Max. Torque Mz (Nm)
8,9
Protection Category
IP10
Working Stroke (mm)
100
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
8
Closing Cover Material
beschichtet
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
116
Actuator Cover Material
beschichtet
Second Moment Of Area Iy
17.000
Second Moment Of Area Iz
150.000
Ambient Temperature (°C)
0 to 40
Max. Actuator Torque (Nm)
0,11
Reference Service Life (km)
3000
Additional Carriage Weight (g)
153
Base Weight At 0 mm Stroke (g)
780
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,015
Mass Inertia JH Per Metre Stroke
0,0316
Static Load Factor Linear Guide (N)
12.150
Dynamic Load Factor Linear Guide (N)
5.746
Static Load Factor Fixed Bearing (N)
1.760
Dynamic Load Factor Fixed Bearing (N)
1.380
Weight Supplement Per 10 mm Stroke (g)
42
Static Load Factor Ball Screw Drive (N)
3.510
Dynamic Load Factor Ball Screw Drive (N)
1.950
EAN
4052568209773
Manufacturer
Festo
