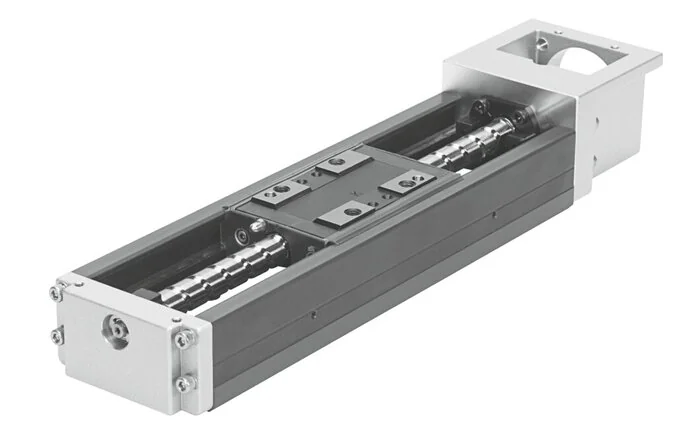

Festo - EGSK-33-600-6P-562777 - Electric Slide

SKU: festo-egsk-33-600-6p-562777

Festo - EGSK-33-600-6P-562777 - Electric Slide

€2,884.90€2,465.73 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,884.90

Brand
Festo
Size
33
Guide
ball guide
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
6
Material Note
RoHs compliant
Spindle Pitch
6
Fastening Type
With Female thread and dowel pin
Reversing Play
20
Mass Inertia JO
0,0115
Moving Mass (g)
310
Max. Speed (m/s)
0,47
Profile Material
High-alloyed steel
Spindle Material
Steel
Carriage Material
Steel
Max. Acceleration
20
Max. Force Fy (N)
2469
Max. Force Fz (N)
2469
Repeatability (mm)
±0.01
Carriage Weight (g)
310
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
50,1
Max. Torque My (Nm)
16,4
Max. Torque Mz (Nm)
16,4
Protection Category
IP10
Working Stroke (mm)
600
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
10
Closing Cover Material
beschichtet
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
150
Actuator Cover Material
beschichtet
Second Moment Of Area Iy
62.000
Second Moment Of Area Iz
380.000
Ambient Temperature (°C)
0 to 40
Max. Actuator Torque (Nm)
0,14
Reference Service Life (km)
3000
Additional Carriage Weight (g)
310
Base Weight At 0 mm Stroke (g)
1380
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,07
Mass Inertia JH Per Metre Stroke
0,0771
Static Load Factor Linear Guide (N)
20.200
Dynamic Load Factor Linear Guide (N)
9.207
Static Load Factor Fixed Bearing (N)
2.590
Dynamic Load Factor Fixed Bearing (N)
1.790
Weight Supplement Per 10 mm Stroke (g)
63
Static Load Factor Ball Screw Drive (N)
4.900
Dynamic Load Factor Ball Screw Drive (N)
2.840
EAN
4052568209858
Manufacturer
Festo
