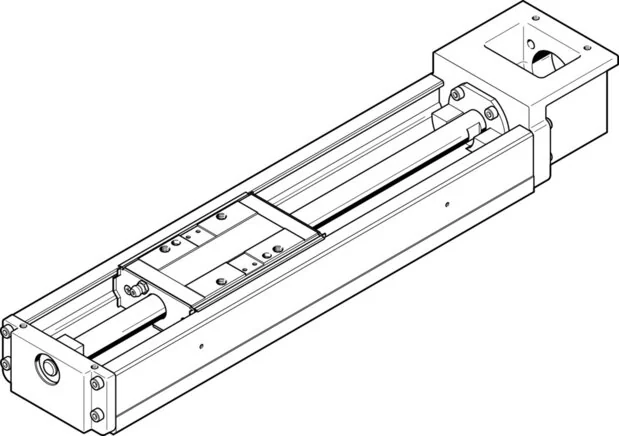

Festo - EGSK-46-400-20P-562792 - Electric Slide

SKU: festo-egsk-46-400-20p-562792

Festo - EGSK-46-400-20P-562792 - Electric Slide

€3,084.53€2,636.35 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,084.53

Brand
Festo
Size
46
Guide
ball guide
Referencing
Reference switch
Spindle Type
Ball screw drive
Feed Constant
20
Material Note
RoHs compliant
Spindle Pitch
20
Fastening Type
With Female thread and dowel pin
Reversing Play
20
Mass Inertia JO
0,154
Moving Mass (g)
910
Max. Speed (m/s)
1,05
Profile Material
High-alloyed steel
Spindle Material
Steel
Carriage Material
Steel
Max. Acceleration
20
Max. Force Fy (N)
3904
Max. Force Fz (N)
3904
Repeatability (mm)
±0.01
Carriage Weight (g)
910
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
115
Max. Torque My (Nm)
38,7
Max. Torque Mz (Nm)
38,7
Protection Category
IP10
Working Stroke (mm)
400
Spindle Nut Material
Steel
Installation Position
arbitrary
Spindle Diameter (mm)
15
Closing Cover Material
beschichtet
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
192
Actuator Cover Material
beschichtet
Second Moment Of Area Iy
240.000
Second Moment Of Area Iz
1.500.000
Ambient Temperature (°C)
0 to 40
Max. Actuator Torque (Nm)
0,61
Reference Service Life (km)
10000
Additional Carriage Weight (g)
910
Base Weight At 0 mm Stroke (g)
5170
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,1
Mass Inertia JH Per Metre Stroke
0,39
Static Load Factor Linear Guide (N)
45.500
Dynamic Load Factor Linear Guide (N)
21.747
Static Load Factor Fixed Bearing (N)
3.240
Dynamic Load Factor Fixed Bearing (N)
6.600
Weight Supplement Per 10 mm Stroke (g)
127
Static Load Factor Ball Screw Drive (N)
7.150
Dynamic Load Factor Ball Screw Drive (N)
3.040
EAN
4052568210007
Manufacturer
Festo
