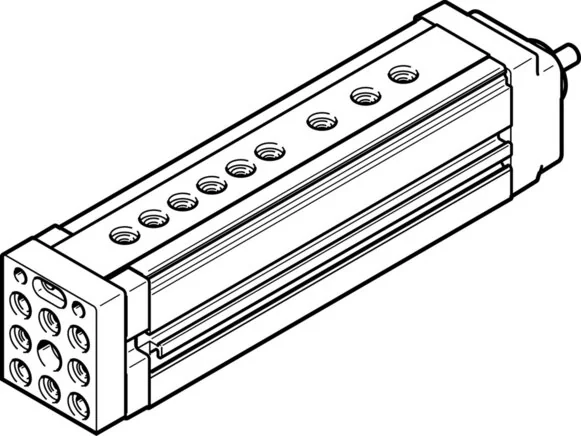

Festo - EGSL-BS-35-50-8P-562160 - Mini Slide

SKU: festo-egsl-bs-35-50-8p-562160

Festo - EGSL-BS-35-50-8P-562160 - Mini Slide

€1,856.70€1,586.92 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,856.70

Brand
Festo
Size
35
Guide
Ball cage guide
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
8
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
8
Cover Material
lackiert
Fastening Type
With Accessories
Reversing Play
50
Mass Inertia JO
0,0426
Moving Mass (g)
270
Housing Material
eloxiert
Max. Speed (m/s)
0,5
Parallelity (mm)
0,050
Spindle Material
Roller bearing steel
Max. Acceleration
25
Max. Force Fy (N)
512
Max. Force Fz (N)
512
Position Detection
For proximity switch
Repeatability (mm)
±0.015
Construction Set Up
mit Kugelgewindetrieb
Max. Torque Mx (Nm)
6,2
Max. Torque My (Nm)
6
Max. Torque Mz (Nm)
6
Protection Category
IP40
Working Stroke (mm)
50
Yoke Plate Material
eloxiert
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
8
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
75
Guide Carriage Material
Roller bearing steel
Ambient Temperature (°C)
0 to 60
Continuous Feed Force (N)
50
Max. Actuator Torque (Nm)
0,127
Sound Pressure Level (dB(A))
60
Corrosion Resistance Class KBK
0 - No corrosion stressing
Empty Run Actuator Torque (Nm)
0,015
Mass Inertia JL Per kg Usable Load
0,0162
Max. Radial Force On Drive Shaft (N)
20
Running Parallelity In Z-direction (mm)
0,02
Reference Value Effective Load, Vertical (kg)
2
Reference Value Effective Load, Horizontal (kg)
2
EAN
4052568208967
Manufacturer
Festo
