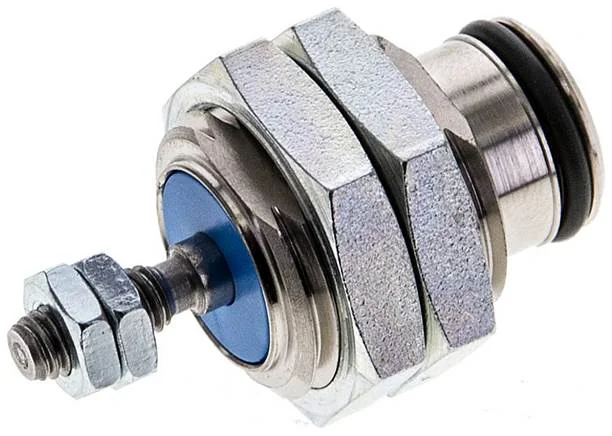

Festo - EGZ-10-5-15036 - Screw-in Cylinder

SKU: festo-egz-10-5-15036

Festo - EGZ-10-5-15036 - Screw-in Cylinder

€68.83€58.83 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€68.83

Brand
Festo
Variants
One-sided piston rod
Dampening
No dampening
Stroke (mm)
5
Cover Material
POM
Fastening Type
With locking nut
Piston Ø (mm)
10
Seals Material
TPE-U(PU)
Housing Material
nickel-plated
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Position Detection
without
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed steel
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
single action
Operating Pressure (bar)
2 to 8
Ambient Temperature (°C)
-20 to 80
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Note On Operating And Control Medium
Esteröl < 0,1mg/m³, nach ISO 8573-1:2010 [-:-:2]
Tightening Torque Of Drive Mounting (Nm)
20
Theoretical Force At 0.6 MPa (6 bar, 87 psi) (N)
42
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
42
EAN
4052568066611
Manufacturer
Festo
