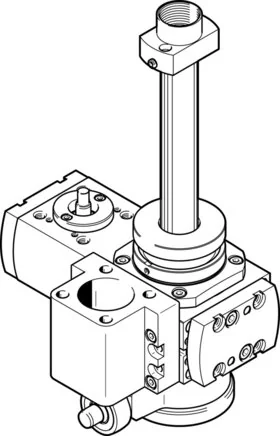

Festo - EHMB-20-100-1107096 - Rotary-Lift Module

SKU: festo-ehmb-20-100-1107096

Festo - EHMB-20-100-1107096 - Rotary-Lift Module

€4,656.51€3,979.92 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,656.51

Brand
Festo
Size
20
Gear Type
V-belt gear
Gear Ratio
4.5:1
Mass Inertia
1000
Material Note
RoHs compliant
Repeatability
±0,03 °
Cover Material
eloxiert
Flange Material
Aluminium-Knetlegierung, eloxiert
Holder Material
Aluminium-Knetlegierung, eloxiert
Moving Mass (g)
705
V-belt Material
Polychloroprene with glass fibre
Bracket Material
Aluminium-Knetlegierung, eloxiert
Housing Material
eloxiert
Max. Input Speed
1.350
Max. Speed (m/s)
1,5
Angle Of Rotation
Endless
Max. Output Speed
300
Position Detection
For inductive sensors
Construction Set Up
mit Zahnriemen
Working Stroke (mm)
0 to 100
Drive Shaft Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
480
V-belt Separation (mm)
2
Actuator Shaft Material
Steel
Max. Output Torque (Nm)
3,15
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
0,7
Drive Pinion Diameter (mm)
6
Sound Pressure Level (dB(A))
54
Empty Run Actuator Torque (Nm)
0,07
Reference Value Effective Load, Vertical (g)
3
Reference Value Effective Load, Horizontal (g)
3
EAN
4052568226930
Manufacturer
Festo
