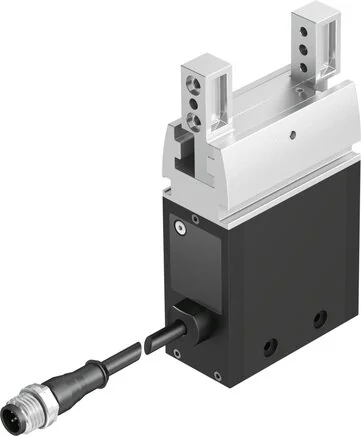

Festo - EHPS-20-A-LK-8103810 - Parallel Gripper

SKU: festo-ehps-20-a-lk-8103810

Browse all parts
Festo - EHPS-20-A-LK-8103810 - Parallel Gripper

€2,209.87€1,888.78 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,209.87

Brand
Festo
Size
20
Guide
sliding guide
Report
IO-Link
KC-mark
KC-EMV
Motor Type
DC servomotor
Permission
RCM mark
Drive System
Electrical
Mass Inertia
2,02
Material Note
RoHs compliant
Fastening Type
With Throughway bore and centring sleeve
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
IO-Link, Device ID
0x000032
Position Detection
über IO-Link Schnittstelle
Construction Set Up
elektrischer Greifer
IO-Link, Port Class
Device B
Protection Category
IP40
Complies To Standard
IEC 61010-1
Max. Power Input (A)
2000
Electrical Connection
M12x1
Gripper Jaws Material
High-alloyed stainless steels
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-B2-L
IO-Link, Number Of Ports
Device 1
Rotational Symmetry (mm)
0,2
Total Gripping Force (N)
218
Ambient Temperature (°C)
5 to 60
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
no
Max. Cycle Frequency (Hz)
0,7
IO-Link, Communication Mode
COM3 (230.4 kBaud)
IO-Link, Data Memory Needed
500
Operation-readiness Display
LED
Repeatability Grippers (mm)
0,01
Stroke Per Gripper Jaw (mm)
13
Max. Exchange Precision (mm)
0,2
Sound Pressure Level (dB(A))
70
Max. Gripper Jaw Play Sz (mm)
0,05
Corrosion Resistance Class KBK
1 - low corrosion stress
IO-Link, Process Data Width IN
6 Byte
Permitted Voltage Oscillations
± 10 %
IO-Link, Process Data Width OUT
8 Byte
IO-Link, Minimum Cycle Time (ms)
5
Nominal Operating Voltage DC (V)
24
IO-Link, Process Data Contents IN
16 bit (StatusWord)
IO-Link, Process Data Contents OUT
8 bit (WorkpieceNo)
Lubrication Interval Guide Elements
2
Ex Protection Approval Outside Of The EU
EPL Gb (GB)
Max. Force On Gripper Jaws Fz Static (N)
325
Max. Mass Per External Griper Finger (g)
150
Max. Torque On Gripper Jaws Mx Static (Nm)
13
Max. Torque On Gripper Jaws My Static (Nm)
8,0
Max. Torque On Gripper Jaws Mz Static (Nm)
13
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0,3
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568458874
Manufacturer
Festo
