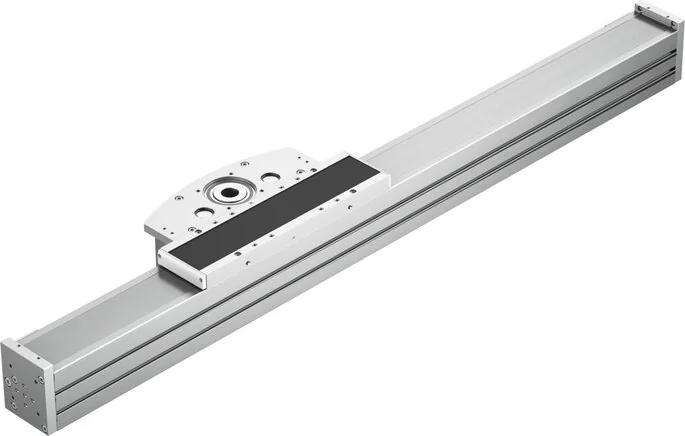

Festo - ELCC-TB-KF-110-300-0H-P0-CR-8082410 - Boom Axle

SKU: festo-elcc-tb-kf-110-300-0h-p0-cr-8082410

Browse all parts
Festo - ELCC-TB-KF-110-300-0H-P0-CR-8082410 - Boom Axle

€6,941.94€5,933.28 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€6,941.94

Brand
Festo
Size
110
Guide
ball guide
Feed Constant
216
Material Note
RoHs compliant
Mass Inertia JO
157,1
V-belt Material
Polychloroprene with glas cord and nylon covering
Housing Material
High-alloyed stainless steels
Max. Speed (m/s)
5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium-Guss, eloxiert
Max. Acceleration
30
Max. Force Fy (N)
20596
Max. Force Fz (N)
20022
Repeatability (mm)
±0.05
Construction Set Up
Elektromechanische Auslegerachse
Max. Torque Mx (Nm)
317
Max. Torque My (Nm)
2368
Max. Torque Mz (Nm)
2286
Protection Category
IP20
Stroke Reserve (mm)
0
Working Stroke (mm)
300
Installation Position
arbitrary
Actuator Head Material
Aluminium-Knetlegierung, eloxiert
Closing Cover Material
Aluminium-Knetlegierung, eloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
2500
V-belt Separation (mm)
8
Guide Carriage Material
Wälzlagerstahl, Corrotect beschichtet
Second Moment Of Area Iy
6.830.570
Second Moment Of Area Iz
4.925.970
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
90
Reference Service Life (km)
5000
V-belt Clamping Body Material
Aluminium-Knetlegierung, eloxiert
Base Weight At 0 mm Stroke (g)
27299
Corrosion Resistance Class KBK
0 - No corrosion stressing
Moving Mass At 0 mm Stroke (g)
10017
Mass Inertia JH Per Metre Stroke
174,9
Mass Inertia JL Per kg Usable Load
11,8
Weight Supplement Per 10 mm Stroke (g)
148
Actuator Pinion Effective Diameter (mm)
68,755
Supplement Moved Mass Per 10 mm Stroke (g)
148
Lubrication Interval Running Section Depending (km)
1.000
EAN
4052568448028
Manufacturer
Festo
