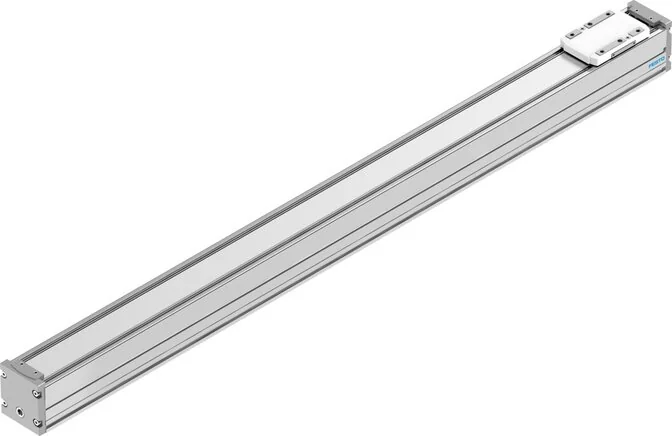

Festo - ELFC-KF-45-600-8062807 - Guide Axis

SKU: festo-elfc-kf-45-600-8062807

Browse all parts
Festo - ELFC-KF-45-600-8062807 - Guide Axis

€526.43€449.94 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€526.43

Brand
Festo
Size
45
Guide
ball guide
Material Note
RoHs compliant
Power-on Time
100%
Moving Mass (g)
144
Max. Speed (m/s)
1,5
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
880
Max. Force Fz (N)
880
Pushing Force (N)
4,5
Position Detection
For inductive sensors
Construction Set Up
Guide
Max. Torque Mx (Nm)
5,5
Max. Torque My (Nm)
4,7
Max. Torque Mz (Nm)
4,7
Protection Category
IP40
Working Stroke (mm)
600
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Guide Carriage Material
Steel
Second Moment Of Area Iy
140.000
Second Moment Of Area Iz
170.000
Ambient Temperature (°C)
0 to 50
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
300
Max. Force Fz Total Axis (N)
600
Base Weight At 0 mm Stroke (g)
384
Corrosion Resistance Class KBK
0 - No corrosion stressing
Max. Moment Mx Total Axis (Nm)
5,5
Max. Moment My Total Axis (Nm)
4,7
Max. Moment Mz Total Axis (Nm)
4,7
Torsional Moment Of Inertia To
8.500
Static Bending (Load At Standstill)
0.1 % of the axis length
Weight Supplement Per 10 mm Stroke (g)
23
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
20
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
EAN
4052568296360
Manufacturer
Festo
