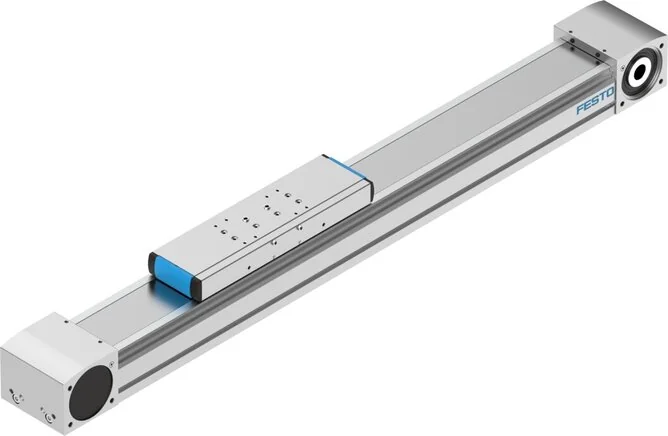

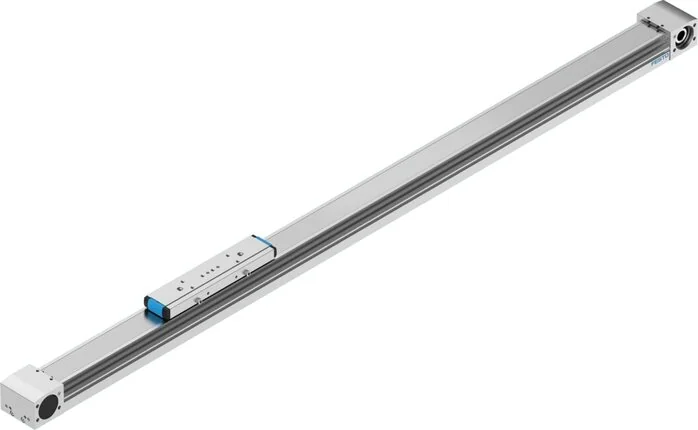

Festo - ELGA-TB-KF-120-600-0H-8041866 - Toothed Belt Axis

SKU: festo-elga-tb-kf-120-600-0h-8041866

Festo - ELGA-TB-KF-120-600-0H-8041866 - Toothed Belt Axis

€3,914.31€3,345.56 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,914.31

Brand
Festo
Size
120
Guide
ball guide
Motor Type
Servo motor
Feed Constant
165
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
40,99
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
5
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
5500
Max. Force Fz (N)
6890
Repeatability (mm)
±0.08
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
104
Max. Torque My (Nm)
680
Max. Torque Mz (Nm)
680
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
600
Belt Pulley Material
High-alloyed stainless steels
Carriage Weight (kg)
4.190
Installation Position
arbitrary
Masking Tape Material
Rust-free stainless steel band
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
1300
V-belt Separation (mm)
5
Actuator Cover Material
eloxiert
Guide Carriage Material
Quenched and tempered steel
Corrotect beschichtet
Second Moment Of Area Iy
1.264.580
Second Moment Of Area Iz
4.365.790
Ambient Temperature (°C)
-10 to 60
Max. Actuator Torque (Nm)
34,1
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
5500
Max. Force Fz Total Axis (N)
6890
V-belt Clamping Body Material
Cast stainless steel
Empty Run Actuator Torque (Nm)
2,8
Max. Moment Mx Total Axis (Nm)
104
Max. Moment My Total Axis (Nm)
680
Max. Moment Mz Total Axis (Nm)
680
Torsional Moment Of Inertia To
435.680
Additional Carriage Weight (kg)
3.240
Base Weight At 0 mm Stroke (kg)
15680
Mass Inertia JH Per Metre Stroke
2,15
Mass Inertia JL Per kg Usable Load
6,9
Max. Empty Run Shift Resistance (N)
76,2
Static Bending (Load At Standstill)
0.1 % of the axis length
Actuator Pinion Effective Diameter (mm)
52,52
Weight Supplement Per 10 mm Stroke (kg)
106
Mass Inertia JW For Additional Carriages
28,91
Measurement Principle Travel Measurement System
Incremental
Distance Between Slide Surface And Guide Centre (mm)
70
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
20240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
25355
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
383
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
2502
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
2502
EAN
4052568286668
Manufacturer
Festo
