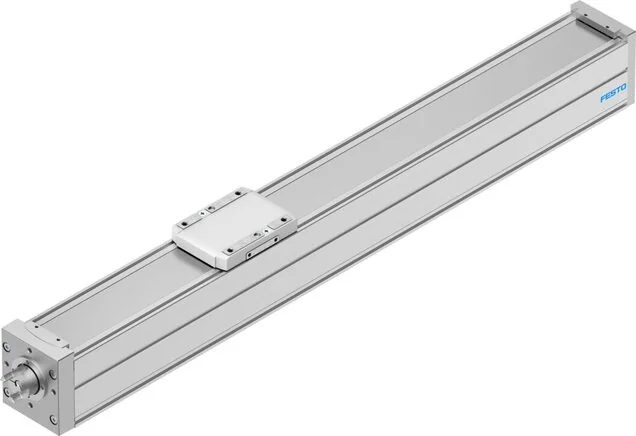

Festo - ELGC-BS-KF-80-800-16P-8061504 - Spindle Axis

SKU: festo-elgc-bs-kf-80-800-16p-8061504

Festo - ELGC-BS-KF-80-800-16P-8061504 - Spindle Axis

€1,380.13€1,179.60 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,380.13

Brand
Festo
Size
80
Guide
ball guide
Max. Speed
3750
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
16
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
16
Mass Inertia JO
0,07856
Moving Mass (g)
978
Max. Speed (m/s)
1
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
5543
Max. Force Fz (N)
5543
Position Detection
For inductive sensors
Repeatability (mm)
±0.01
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
59,8
Max. Torque My (Nm)
56,2
Max. Torque Mz (Nm)
56,2
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
800
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
16
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
350
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T46
Second Moment Of Area Iy
1.370.000
Second Moment Of Area Iz
1.660.000
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
900
Max. Force Fz Total Axis (N)
2700
Max. Moment Mx Total Axis (Nm)
59,8
Max. Moment My Total Axis (Nm)
56,2
Max. Moment Mz Total Axis (Nm)
56,2
Torsional Moment Of Inertia To
90.500
Mass Inertia JH Per Metre Stroke
0,35257
Impact Energy At The End Positions
0,002
Mass Inertia JL Per kg Usable Load
0,064846
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
500
Weight Supplement Per 10 mm Stroke (g)
88
Empty Run Torque At Maximum Movement Speed (Nm)
0,396
Empty Run Torque At Minimum Movement Speed (Nm)
0,095
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
72,5
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
20400
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
20400
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
220
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
207
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
207
EAN
4052568295936
Manufacturer
Festo
