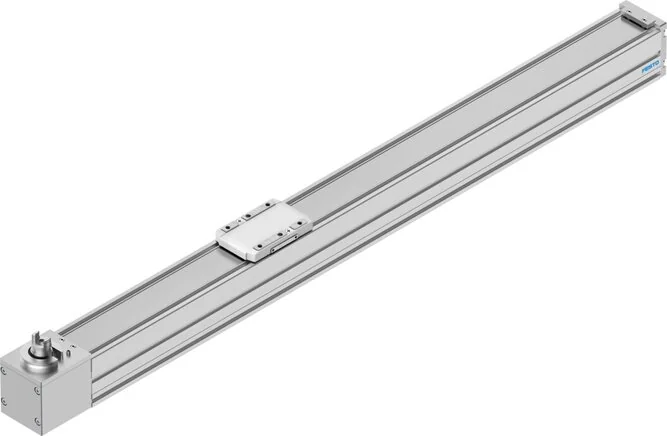

Festo - ELGC-TB-KF-45-1200-8062774 - Toothed Belt Axis

SKU: festo-elgc-tb-kf-45-1200-8062774

Festo - ELGC-TB-KF-45-1200-8062774 - Toothed Belt Axis

€1,006.62€860.36 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,006.62

Brand
Festo
Size
45
Guide
ball guide
Motor Type
Servo motor
Feed Constant
60
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
0,1862
Moving Mass (g)
169
V-belt Material
Polychloroprene oder Nitrilkautschuk (NBR) mit Glascord und Nylonüberzug
Max. Speed (m/s)
1,2
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium die casting
Max. Acceleration
15
Max. Force Fy (N)
880
Max. Force Fz (N)
880
Position Detection
For inductive sensors
Repeatability (mm)
±0.1
Carriage Weight (g)
55
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
5,5
Max. Torque My (Nm)
4,7
Max. Torque Mz (Nm)
4,7
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
1200
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
Rust-free stainless steel band
Closing Cover Material
Aluminium-Druckguss, lackiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
75
V-belt Separation (mm)
2
Actuator Cover Material
Aluminium-Druckguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
V32
Second Moment Of Area Iy
140.000
Second Moment Of Area Iz
170.000
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
0,716
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
300
Max. Force Fz Total Axis (N)
600
Base Weight At 0 mm Stroke (g)
760
Empty Run Actuator Torque (Nm)
0,075
Max. Moment Mx Total Axis (Nm)
5,5
Max. Moment My Total Axis (Nm)
4,7
Max. Moment Mz Total Axis (Nm)
4,7
Torsional Moment Of Inertia To
8.500
Mass Inertia JH Per Metre Stroke
0,0281
Impact Energy At The End Positions
0,000125
Mass Inertia JL Per kg Usable Load
0,9119
Max. Empty Run Shift Resistance (N)
7,8
Static Bending (Load At Standstill)
0.1 % of the axis length
Weight Supplement Per 10 mm Stroke (g)
23
Actuator Pinion Effective Diameter (mm)
19,10
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
42,8
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 7 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
3240
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
20
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
17
EAN
4052568296032
Manufacturer
Festo
