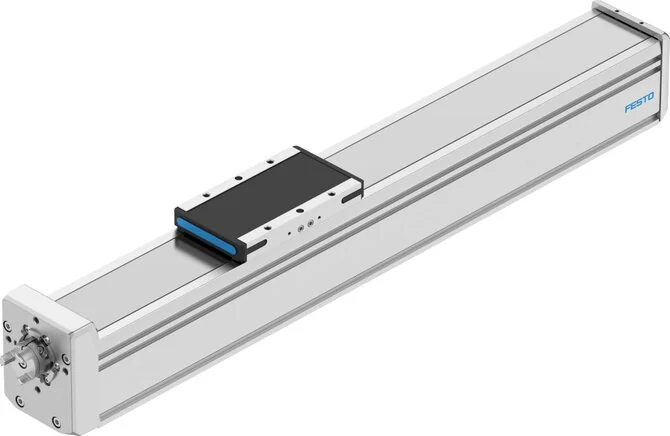

Festo - ELGD-BS-KF-80-800-0H-5P-8192273 - Spindle Axis

SKU: festo-elgd-bs-kf-80-800-0h-5p-8192273

Browse all parts
Festo - ELGD-BS-KF-80-800-0H-5P-8192273 - Spindle Axis

€1,877.16€1,604.41 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,877.16

Brand
Festo
Size
80
Guide
ball guide
Max. Speed
5000
Motor Type
Servo motor
Spindle Type
Ball screw drive
Feed Constant
12
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
5
Mass Inertia JO
0,10619
Moving Mass (g)
990
Max. Speed (m/s)
0,42
Profile Material
Aluminium-Knetlegierung, eloxiert
Spindle Material
Steel
Carriage Material
Aluminium wrought alloy
Max. Acceleration
15
Max. Force Fy (N)
3906
Max. Force Fz (N)
3913
Position Detection
For inductive sensors
Repeatability (mm)
±0.01
Construction Set Up
mit Kugelumlaufspindel
Max. Torque Mx (Nm)
95
Max. Torque My (Nm)
42
Max. Torque Mz (Nm)
42
Protection Category
IP40
Reversing Play (mm)
150
Stroke Reserve (mm)
0
Working Stroke (mm)
800
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Steel
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Spindle Diameter (mm)
16
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
2650
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
T46
Second Moment Of Area Iy
1.213.000
Second Moment Of Area Iz
2.052.000
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
2500
Max. Force Fz Total Axis (N)
2500
Base Weight At 0 mm Stroke (g)
3147
Max. Moment Mx Total Axis (Nm)
100
Max. Moment My Total Axis (Nm)
42
Max. Moment Mz Total Axis (Nm)
42
Torsional Moment Of Inertia To
405.000
Mass Inertia JH Per Metre Stroke
0,39016
Mass Inertia JL Per kg Usable Load
0,00633
Static Bending (Load At Standstill)
0.1 % of the axis length
Max. Radial Force On Drive Shaft (N)
500
Impact Energy At The End Positions (J)
0,002
Weight Supplement Per 10 mm Stroke (g)
90
Empty Run Torque At Maximum Movement Speed (Nm)
0,172
Empty Run Torque At Minimum Movement Speed (Nm)
0,065
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
62
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
17576
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
17576
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
422
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
162
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
162
EAN
4052568644642
Manufacturer
Festo
