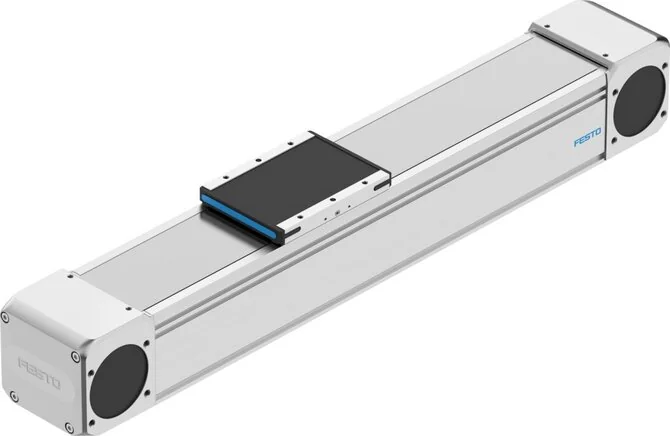

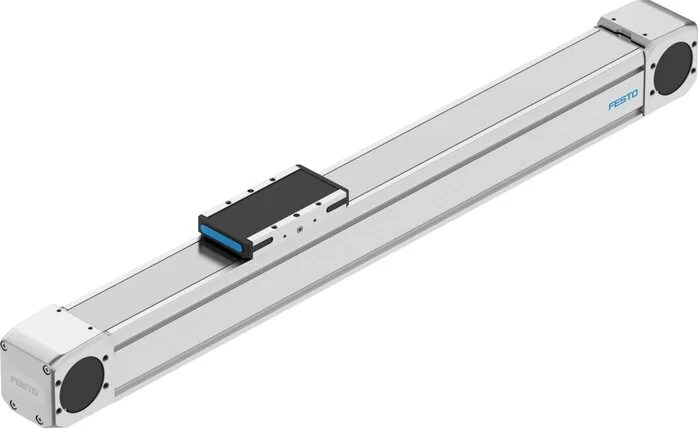

Festo - ELGD-TB-KF-120-600-0H-PU2-8192367 - Toothed Belt Axis

€2,416.28€2,065.20 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,416.28

Brand
Festo
Size
120
Guide
ball guide
Motor Type
Servo motor
Feed Constant
175
Material Note
RoHs compliant
Power-on Time
100%
Mass Inertia JO
30,2136
Moving Mass (g)
1733
V-belt Material
Polyurethan mit Stahlcord
Max. Speed (m/s)
3
Profile Material
Aluminium-Knetlegierung, eloxiert
Carriage Material
Aluminium wrought alloy
Max. Acceleration
50
Max. Force Fy (N)
4300
Max. Force Fz (N)
4300
Position Detection
For inductive sensors
Repeatability (mm)
±0,04
Construction Set Up
mit Zahnriemen
Max. Torque Mx (Nm)
170
Max. Torque My (Nm)
50
Max. Torque Mz (Nm)
60
Protection Category
IP40
Stroke Reserve (mm)
0
Working Stroke (mm)
600
Belt Pulley Material
High-alloyed stainless steels
Maintenance Interval
Lifetime lubrication
Installation Position
arbitrary
Masking Tape Material
High-alloyed stainless steels
Closing Cover Material
Aluminium-Kokillenguss, lackiert
LABS (PWIS) Conformity
VDMA24364-C1-L
Max. Feed Force Fx (N)
1300
V-belt Separation (mm)
5
Actuator Cover Material
Aluminium-Kokillenguss, lackiert
Guide Carriage Material
Steel
Interface Code Actuator
N80
Second Moment Of Area Iy
3.550.000
Second Moment Of Area Iz
8.985.000
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
60
Max. Actuator Torque (Nm)
36,2
Reference Service Life (km)
5000
Dynamic Bending (Load Moved)
0,05 % der Länge der Achse,maximal 0,5 mm
Max. Force Fy Total Axis (N)
2957
Max. Force Fz Total Axis (N)
6500
Base Weight At 0 mm Stroke (g)
10425
Empty Run Actuator Torque (Nm)
2
Max. Moment Mx Total Axis (Nm)
251
Max. Moment My Total Axis (Nm)
80
Max. Moment Mz Total Axis (Nm)
105
Torsional Moment Of Inertia To
1.433.600
Mass Inertia JH Per Metre Stroke
2,792
Mass Inertia JL Per kg Usable Load
7,7562
Max. Empty Run Shift Resistance (N)
71,8
Static Bending (Load At Standstill)
0.1 % of the axis length
Impact Energy At The End Positions (J)
0,001
Weight Supplement Per 10 mm Stroke (g)
116
Actuator Pinion Effective Diameter (mm)
55,70
Measurement Principle Travel Measurement System
Incremental
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Distance Between Slide Surface And Guide Centre (mm)
80
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
Fy For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
17576
Fz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (N)
17576
Mx For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
730
My For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
162
Mz For Theoretical Lifetime Of 100 Km (Pure Guide Observation) (Nm)
162
EAN
4052568775988
Manufacturer
Festo
