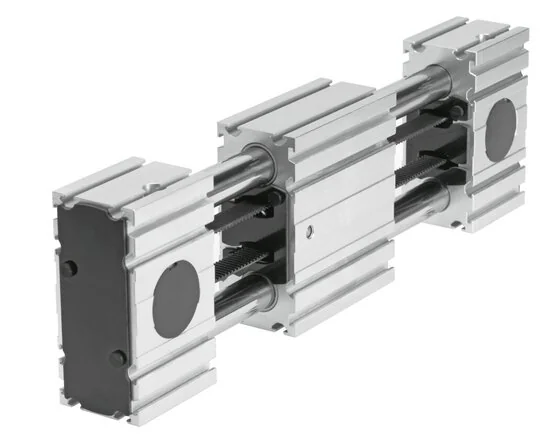

Festo - ELGR-TB-35-500-0H-8083774 - Toothed Belt Axis

SKU: festo-elgr-tb-35-500-0h-8083774

Browse all parts
Festo - ELGR-TB-35-500-0H-8083774 - Toothed Belt Axis

€712.39€608.88 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€712.39

Brand
Festo
Size
35
Guide
ball guide
Motor Type
Servo motor
Feed Constant
58
Material Note
RoHs compliant
Power-on Time
100%
V-belt Bending
0,094
V-belt Material
Polychloroprene with glas cord and nylon covering
Max. Speed (m/s)
0.9 to 3
Profile Material
eloxiert
Carriage Material
eloxiert
Max. Acceleration
50
Max. Force Fy (N)
50
Max. Force Fz (N)
50
Repeatability (mm)
±0.1
Construction Set Up
mit Zahnriemen
Protection Category
IP20
Working Stroke (mm)
500
Belt Pulley Material
High-alloyed stainless steels
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
50
V-belt Separation (mm)
2
Actuator Cover Material
eloxiert
Second Moment Of Area Iy
3.770
Second Moment Of Area Iz
4.190
Ambient Temperature (°C)
-10 to 50
Max. Actuator Torque (Nm)
0,46
Reference Service Life (km)
5000
V-belt Clamping Body Material
Beryllium bronze
Empty Run Actuator Torque (Nm)
0,1
Mass Inertia JH Per Metre Stroke
0,026
Mass Inertia JL Per kg Usable Load
0,85
Max. Empty Run Shift Resistance (N)
10,8
Weight Supplement Per 10 mm Stroke (g)
25
Actuator Pinion Effective Diameter (mm)
18,46
Supplement Moved Mass Per 10 mm Stroke (g)
0,31
EAN
4052568449254
Manufacturer
Festo
