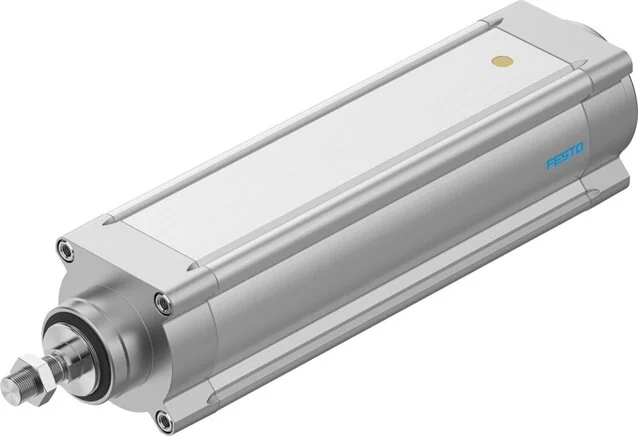

Festo - ESBF-BS-100-400-5P-574117 - Electric Cylinder

SKU: festo-esbf-bs-100-400-5p-574117

Browse all parts
Festo - ESBF-BS-100-400-5P-574117 - Electric Cylinder

€4,098.63€3,503.10 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4,098.63

Brand
Festo
Size
100
Max. Speed
2010
Motor Type
Servo motor
Stroke (mm)
400
Spindle Type
Ball screw
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
5
Cover Material
Aluminium-Guss, beschichtet
Fastening Type
oder Zubehör
Piston Rod End
Male thread
Reversing Play
30
Mass Inertia JO
4,6963
Screws Material
Zinc-plated steel
Max. Speed (m/s)
0,17
Spindle Material
Roller bearing steel
Based On Standard
ISO 15552
Max. Acceleration
5
Piston Rod Thread
M20x1,5
Relative Humidity
0 - 95 %
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Repeatability (mm)
±0.01
Construction Set Up
Electro-cylinder with ball screw thread
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Working Stroke (mm)
400
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
40
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
17000
Anti-twist Lock / Guide
Slide guided
Interface Code Actuator
D100
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-20 to 60
Max. Actuator Torque (Nm)
16,9
Base Weight At 0 mm Stroke (g)
11123
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Empty Run Actuator Torque (Nm)
0,7
Moving Mass At 0 mm Stroke (g)
8786
Mass Inertia JH Per Metre Stroke
18,978
Mass Inertia JL Per kg Usable Load
0,00633
Max. Radial Force On Drive Shaft (N)
1100
Weight Supplement Per 10 mm Stroke (g)
193
Max. Twist Angle Of The Piston Rod ± (°)
0,5
Supplement Moved Mass Per 10 mm Stroke (g)
132
Reference Value Effective Load, Vertical (kg)
1700
Reference Value Effective Load, Horizontal (kg)
1700
EAN
4052568222147
Manufacturer
Festo
