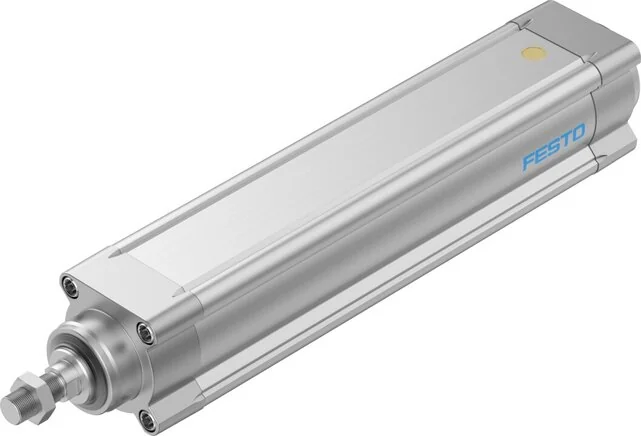

Festo - ESBF-BS-63-300-10P-574098 - Electric Cylinder

SKU: festo-esbf-bs-63-300-10p-574098

Browse all parts
Festo - ESBF-BS-63-300-10P-574098 - Electric Cylinder

€3,055.36€2,611.42 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€3,055.36

Brand
Festo
Size
63
Max. Speed
3220
Motor Type
Servo motor
Stroke (mm)
300
Spindle Type
Ball screw
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
10
Cover Material
Aluminium-Guss, beschichtet
Fastening Type
oder Zubehör
Piston Rod End
Male thread
Reversing Play
30
Mass Inertia JO
0,48631
Screws Material
Zinc-plated steel
Max. Speed (m/s)
0,53
Spindle Material
Roller bearing steel
Based On Standard
ISO 15552
Max. Acceleration
15
Piston Rod Thread
M16x1,5
Relative Humidity
0 - 95 %
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Repeatability (mm)
±0.01
Construction Set Up
Electro-cylinder with ball screw thread
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Working Stroke (mm)
300
Maintenance Interval
Lifetime lubrication
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
25
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
7000
Anti-twist Lock / Guide
Slide guided
Interface Code Actuator
D60
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-20 to 60
Max. Actuator Torque (Nm)
13,1
Base Weight At 0 mm Stroke (g)
3163
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Empty Run Actuator Torque (Nm)
0,45
Moving Mass At 0 mm Stroke (g)
1829
Mass Inertia JH Per Metre Stroke
2,8592
Mass Inertia JL Per kg Usable Load
0,02533
Max. Radial Force On Drive Shaft (N)
700
Weight Supplement Per 10 mm Stroke (g)
87
Max. Twist Angle Of The Piston Rod ± (°)
0,4
Supplement Moved Mass Per 10 mm Stroke (g)
52
Reference Value Effective Load, Vertical (kg)
700
Reference Value Effective Load, Horizontal (kg)
700
EAN
4052568221959
Manufacturer
Festo
