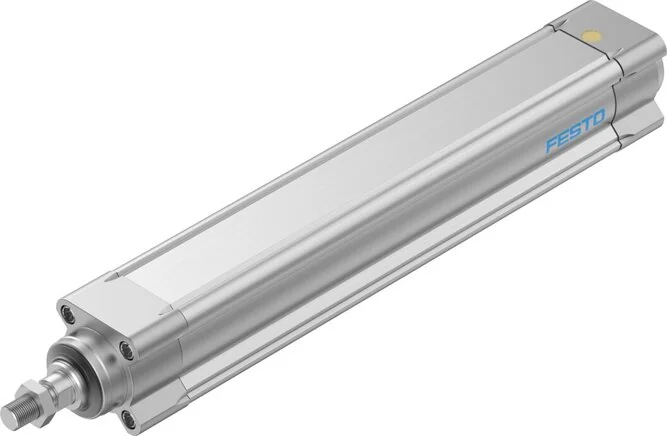

Festo - ESBF-LS-40-300-3P-8022587 - Electric Cylinder

SKU: festo-esbf-ls-40-300-3p-8022587

Browse all parts
Festo - ESBF-LS-40-300-3P-8022587 - Electric Cylinder

€1,290.35€1,102.86 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,290.35

Brand
Festo
Size
40
Max. Speed
1000
Motor Type
Servo motor
Stroke (mm)
300
Spindle Type
Sliding thread
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
3
Cover Material
Aluminium-Knetlegierung, gleiteloxiert
Fastening Type
oder Zubehör
Piston Rod End
Male thread
Reversing Play
100
Mass Inertia JO
0,0449
Screws Material
Zinc-plated steel
Max. Speed (m/s)
0,15
Spindle Material
Roller bearing steel
Based On Standard
ISO 15552
Max. Acceleration
2,5
Piston Rod Thread
M12x1,25
Relative Humidity
0 - 95 %
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Repeatability (mm)
±0.05
Construction Set Up
Electro-cylinder with leadscrew spindle
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Working Stroke (mm)
300
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
16
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
1000
Anti-twist Lock / Guide
Slide guided
Interface Code Actuator
D40
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 60
Max. Actuator Torque (Nm)
2,4
Base Weight At 0 mm Stroke (g)
1079
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Empty Run Actuator Torque (Nm)
0,2
Moving Mass At 0 mm Stroke (g)
317
Mass Inertia JH Per Metre Stroke
1,0187
Mass Inertia JL Per kg Usable Load
0,0063
Max. Radial Force On Drive Shaft (N)
130
Weight Supplement Per 10 mm Stroke (g)
48
Max. Twist Angle Of The Piston Rod ± (°)
0,2
Supplement Moved Mass Per 10 mm Stroke (g)
11
Reference Value Effective Load, Vertical (kg)
100
Reference Value Effective Load, Horizontal (kg)
100
EAN
4052568278410
Manufacturer
Festo
