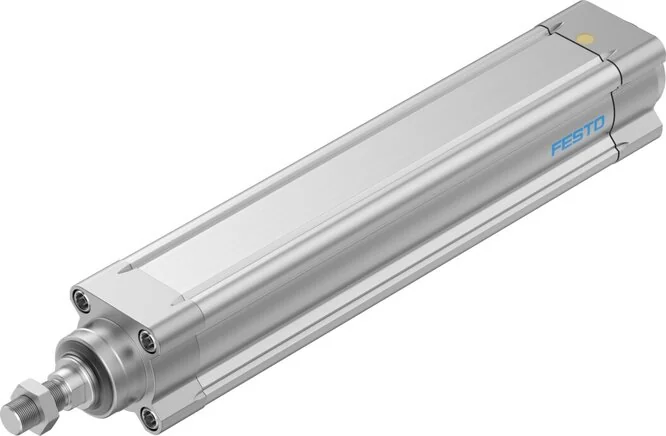

Festo - ESBF-LS-50-200-4P-2295383 - Electric Cylinder

SKU: festo-esbf-ls-50-200-4p-2295383

Browse all parts
Festo - ESBF-LS-50-200-4P-2295383 - Electric Cylinder

€1,462.46€1,249.97 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,462.46

Brand
Festo
Size
50
Max. Speed
750
Motor Type
Servo motor
Stroke (mm)
200
Spindle Type
Sliding thread
Material Note
RoHs compliant
Power-on Time
100%
Spindle Pitch
4
Cover Material
Aluminium-Knetlegierung, gleiteloxiert
Fastening Type
oder Zubehör
Piston Rod End
Male thread
Reversing Play
100
Mass Inertia JO
0,1407
Screws Material
Zinc-plated steel
Max. Speed (m/s)
0,2
Spindle Material
Roller bearing steel
Based On Standard
ISO 15552
Max. Acceleration
2,5
Piston Rod Thread
M16x1,5
Relative Humidity
0 - 95 %
Food Compatibility
See expanded material information
Position Detection
For proximity switch
Repeatability (mm)
±0.05
Construction Set Up
Electro-cylinder with leadscrew spindle
Piston Rod Material
High-alloyed stainless steels
Protection Category
IP40
Working Stroke (mm)
200
Spindle Nut Material
Roller bearing steel
Installation Position
arbitrary
Spindle Diameter (mm)
20
Cylinder Tube Material
Aluminium-Knetlegierung, gleiteloxiert
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Feed Force Fx (N)
1600
Anti-twist Lock / Guide
Slide guided
Interface Code Actuator
D50
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 60
Max. Actuator Torque (Nm)
4,8
Base Weight At 0 mm Stroke (g)
1716
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Empty Run Actuator Torque (Nm)
0,3
Moving Mass At 0 mm Stroke (g)
532
Mass Inertia JH Per Metre Stroke
1,2382
Mass Inertia JL Per kg Usable Load
0,004
Max. Radial Force On Drive Shaft (N)
300
Weight Supplement Per 10 mm Stroke (g)
67
Max. Twist Angle Of The Piston Rod ± (°)
0,15
Supplement Moved Mass Per 10 mm Stroke (g)
13
Reference Value Effective Load, Vertical (kg)
160
Reference Value Effective Load, Horizontal (kg)
160
EAN
4052568264734
Manufacturer
Festo
