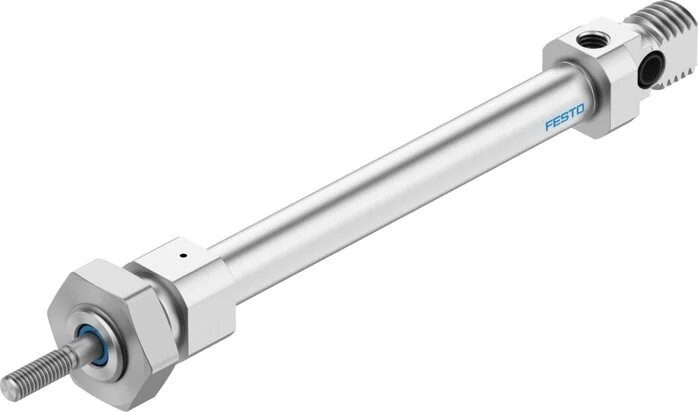

Festo - ESNU-8-50-P-A-19256 - Standard Cylinder

SKU: festo-esnu-8-50-p-a-19256

Browse all parts
Festo - ESNU-8-50-P-A-19256 - Standard Cylinder

€58.89€50.33 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€58.89

Brand
Festo
Variants
One-sided piston rod
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
50
Material Note
RoHs compliant
Cover Material
farblos eloxiert
Fastening Type
With Accessories
Piston Rod End
Male thread
Piston Ø (mm)
8
Seals Material
TPE-U(PU)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Piston Rod Thread
M4
Position Detection
For proximity switch
Construction Set Up
Zylinderrohr
Piston Rod Material
High-alloyed stainless steels
Complies To Standard
ISO 6432
Pneumatic Connection
M5
Installation Position
arbitrary
Cylinder Tube Material
High-alloyed stainless steels
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Principle Of Operation
single action
Operating Pressure (MPa)
0,15 to 1
Ambient Temperature (°C)
-20 to 80
Base Weight At 0 mm Stroke (g)
35
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Moving Mass At 0 mm Stroke (g)
7,5
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (J)
0,03
Weight Supplement Per 10 mm Stroke (g)
2,4
Supplement Moved Mass Per 10 mm Stroke (g)
1
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
24,6
EAN
4052568067144
Manufacturer
Festo
